MitraStar DSL-2401HN-T1C-GV

Disclaimer

Modifique o dispositivo somente se for o proprietário. A maioria destes são fornecidos pelo seu ISP em regime de comodato como parte do serviço de internet. Não faça modificações caso o aparelho não seja seu.

Todos os métodos de desbloqueio e material sobre modificações foram criados pelo O3 Labs e disponibilizados GRATUITAMENTE desde o dia de sua elaboração. Espalhem esta informação e ajudem a evitar que PICARETAS roubem e vendam estas informações por aí, seja no Mercado Livre ou por quaisquer outros meios.

Hardware

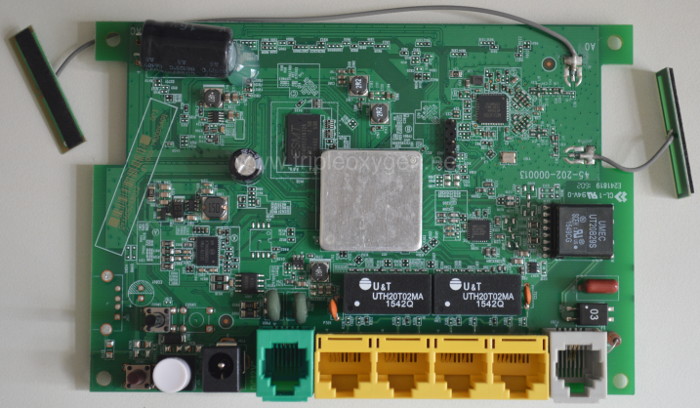

Clique na foto para abrir o álbum.


SoC MT7510T - MediaTek xDSL SoC (MIPS 34Kc 650 MHz )
RAM M14D5121632A - ESMT 512 Mbit (64 MB) DDR2 SDRAM
Flash MX30LF1G18AC - Macronix 1 Gbit (128 MB) NAND
Switch Integrado
USB Não
Wireless MT7592N - MediaTek 2×2 802.11b/g/n
xDSL Line Driver MT7555N - MediaTek xDSL Line Driver
FXS 1 ( SiLabs Si32176 Single ProSLIC )
HPNA Não
Serial Sim
JTAG ?

Bootlog

DRAMC V2.0 (0)

DRAMC V2.2.0.2 (0)


U-Boot 1.1.5 (Dec  4 2015 - 16:36:01)

CPU: MT7510
Memory Size: 64 MB
NAND Page size:2048B,Total size 128MB
bmt pool size: 81

Using default environment
In:    serial
Out:   serial
Err:   serial
Net:   MTK Switch
MAC addresses in MRD and Env don't match.
Use MAC in MRD: 98:97:D1:xx:xx:xx

## Starting application at 0x81F00000 ...

OK
Search PHY addr and found PHY addr=8
Not found TC Phy
Hit any key to stop autoboot: 0
Dual image: checking and selecting FW ......Main image is selected
Uncompressing [LZMA] ...  done.
Linux version 2.6.36 (victor@MSGSW1) (gcc version 4.3.4 (GCC) ) #1 SMP Fri Dec 11 18:23:42 CST 2015
ISPRAM0: PA=00318000,Size=00008000,enabled
DSPRAM0: PA=1dff8000,Size=00001000,enabled
memsize:64MB
Ralink MT751020 SOC prom init
bootconsole [early0] enabled
CPU revision is: 00019555 (MIPS 34Kc)
Determined physical RAM map:
 memory: 03fe0000 @ 00020000 (usable)
Wasting 1024 bytes for tracking 32 unused pages
Zone PFN ranges:
  Normal   0x00000020 -> 0x00004000
Movable zone start PFN for each node
early_node_map[1] active PFN ranges
    0: 0x00000020 -> 0x00004000
3 available secondary CPU TC(s)
PERCPU: Embedded 7 pages/cpu @81083000 s7264 r8192 d13216 u65536
pcpu-alloc: s7264 r8192 d13216 u65536 alloc=16*4096
pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3
Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 16224
Kernel command line:  es=1
PID hash table entries: 256 (order: -2, 1024 bytes)
Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
Primary data cache 64kB, 4-way, VIPT, cache aliases, linesize 32 bytes
Writing ErrCtl register=00000808
Readback ErrCtl register=00000808
nmi base is 810c4200
Memory: 60488k/65408k available (3076k kernel code, 4920k reserved, 646k data, 216k init, 0k highmem)
SLUB: Genslabs=7, HWalign=32, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
Hierarchical RCU implementation.
	RCU-based detection of stalled CPUs is disabled.
	Verbose stalled-CPUs detection is disabled.
NR_IRQS:64
CPU frequency 648.00 MHz
 Using 266.000 MHz high precision timer.
console [ttyS0] enabled, bootconsole disabled
console [ttyS0] enabled, bootconsole disabled
Calibrating delay loop... 430.89 BogoMIPS (lpj=2154496)
pid_max: default: 32768 minimum: 301
Mount-cache hash table entries: 512
34K sync es set to 1.
Config7: 0x80080500
Limit of 4 TCs set
TLB of 64 entry pairs shared by 2 VPEs
VPE 0: TC 0 1 2, VPE 1: TC 3
IPI buffer pool of 16 buffers
CPU revision is: 00019555 ((null))
TC 1 going on-line as CPU 1
CPU revision is: 00019555 ((null))
TC 2 going on-line as CPU 2
CPU revision is: 00019555 ((null))
TC 3 going on-line as CPU 3
Brought up 4 CPUs
NET: Registered protocol family 16
MT7510_pcie_init
check pcie link up status:
isRC0_LINKUP=0
isRC1_LINKUP=1
registering PCI controller with io_map_base unset
bio: create slab <bio-0> at 0
pci 0000:00:01.0: BAR 8: assigned [mem 0x20000000-0x200fffff]
pci 0000:01:00.0: BAR 0: assigned [mem 0x20000000-0x200fffff]
pci 0000:01:00.0: BAR 0: set to [mem 0x20000000-0x200fffff] (PCI address [0x20000000-0x200fffff]
pci 0000:00:01.0: PCI bridge to [bus 01-01]
pci 0000:00:01.0:   bridge window [io  disabled]
pci 0000:00:01.0:   bridge window [mem 0x20000000-0x200fffff]
pci 0000:00:01.0:   bridge window [mem pref disabled]
PCI: Enabling device 0000:00:01.0 (0000 -> 0002)
NET: Registered protocol family 8
NET: Registered protocol family 20
Switching to clocksource MIPS
NET: Registered protocol family 2
IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
TCP established hash table entries: 2048 (order: 2, 16384 bytes)
TCP bind hash table entries: 2048 (order: 2, 16384 bytes)
TCP: Hash tables configured (established 2048 bind 2048)
TCP reno registered
UDP hash table entries: 128 (order: 0, 4096 bytes)
UDP-Lite hash table entries: 128 (order: 0, 4096 bytes)
NET: Registered protocol family 1
TC3162 hardware watchdog module loaded.
squashfs: version 4.0 (2009/01/31) Phillip Lougher
msgmni has been set to 118
cryptomgr_test used greatest stack depth: 15632 bytes left
io scheduler noop registered (default)
ttyS0 at I/O 0xbfbf0003 (irq = 1) is a TC3162
brd: module loaded
tc3162 mtd init: mt6573_nand_init enter
MediaTek MT6573 Nand driver init, version v2.0
tc3162 mtd init: nandflash_probe enter
Allocate 16 byte aligned buffer: 8040d1b0
Enable NFI Clock
# MT6573 NAND # : Use HW ECC
manu_id=c2, dev_id=f1
ext_id=809502,
Device found in MTK table, ID: c2f1
[NAND] pagesz:2048 eccsz: 32, oobsz: 128
Support this Device in MTK table! c2f1
NAND device: Manufacturer ID: 0xc2, Chip ID: 0xf1 (Unknown NAND 128MiB 3,3V 8-bit)
bmt pool size: 81
Init bmt table, size: 81
bmt count: 81, system count: 943
begin to search BMT from block 1023
Match bmt signature @ block: 1023
Valid BMT, version v1
bmt found at block: 1023, mapped block: 0
Load bmt data success @ block 1023
BMT v1.total 0 mapping
Match bbt signature
BBT Checksum is: 0x1
Valid BBT, version v1
bbt found, bad block count: 0
Load bbt data success
[mt6573_nand] probe successfully!
There is no legal FW in tclinux
Creating 14 MTD partitions on "MT6573-Nand":
0x000000000000-0x000000020000 : "bootloader"
0x000000020000-0x000000040000 : "romfile"
0x000000040000-0x00000018808a : "Kernel_main"
mtd: partition "Kernel_main" doesn't end on an erase block -- force read-only
0x00000018808a-0x000000a46ef4 : "Rootfs_main"
mtd: partition "Rootfs_main" doesn't start on an erase block boundary -- force read-only
0x000000a26ef4-0x000000a2c6fa : "Defcfg_main"
mtd: partition "Defcfg_main" doesn't start on an erase block boundary -- force read-only
0x000000040000-0x000002740000 : "Tclinux_main"
0x000002740000-0x000002810000 : "kernel"
mtd: partition "kernel" doesn't end on an erase block -- force read-only
0x000002810000-0x0000075e0000 : "rootfs"
mtd: partition "rootfs" doesn't start on an erase block boundary -- force read-only
0x0000075e0000-0x0000075f0000 : "defcfg"
mtd: partition "defcfg" is out of reach -- disabled
0x000002740000-0x000004e40000 : "tclinux"
0x000004e40000-0x000007580000 : "Tclinux_Buffer"
0x000007580000-0x0000075a0000 : "reservearea"
0x0000075a0000-0x0000075c0000 : "romd"
0x0000075c0000-0x0000075e0000 : "second_romfile"

root filesystem is from Rootfs_main
PPP generic driver version 2.4.2
PPP Deflate Compression module registered
PPP BSD Compression module registered
NET: Registered protocol family 24
IMQ driver loaded successfully.
	Hooking IMQ after NAT on PREROUTING.
	Hooking IMQ before NAT on POSTROUTING.
RT3xxx EHCI/OHCI init.
net/core/klink_updown.c:101 >> Create link_updown kernel netlink success!
u32 classifier
    Performance counters on
    Actions configured
Netfilter messages via NETLINK v0.30.
nf_conntrack version 0.5.0 (945 buckets, 3780 max)
ctnetlink v0.93: registering with nfnetlink.
nf_conntrack_rtsp v0.6.21 loading
xt_time: kernel timezone is -0000
GRE over IPv4 tunneling driver
nf_nat_rtsp v0.6.21 loading
ip_tables: (C) 2000-2006 Netfilter Core Team
TCP cubic registered
NET: Registered protocol family 10
ip6_tables: (C) 2000-2006 Netfilter Core Team
IPv6 over IPv4 tunneling driver
NET: Registered protocol family 17
NET: Registered protocol family 15
Ebtables v2.0 registered
802.1Q VLAN Support v1.8 Ben Greear <greearb@candelatech.com>
All bugs added by David S. Miller <davem@redhat.com>
VFS: Mounted root (squashfs filesystem) readonly on device 31:3.
Freeing unused kernel memory: 216k freed
busybox init and set aff
init started:  BusyBox v1.00 (2015.12.11-10:24+0000) multi-call binary
[ used greatest stack depth: 14832 bytes left
mount used greatest stack depth: 14504 bytes left
busybox used greatest stack depth: 14168 bytes left
tcledctrl: module license 'unspecified' taints kernel.
Disabling lock debugging due to kernel taint
TC3162 LED Manager 0.1 init

tcledctrl version: tcledctrl V1.1.0.0 (Dec 11 2015-18:24:02).
insmod used greatest stack depth: 13896 bytes left
tccicmd V1.1.0.0 (Dec 11 2015-18:24:06)
insmod used greatest stack depth: 13864 bytes left
system is initialized in normal mode
min_free_kbytes=1018
insmod used greatest stack depth: 13776 bytes left

tcsmux version: tcsmux V1.1.0.0 (Sep 27 2013-11:25:43).

tcportbind version: tcportbind V1.1.0.0 (Dec 11 2015-18:24:08).
TCSUPPORT_IPV6
insmod raeth driver
femac.c:v1.00-NAPI 29.Mar.2011
eth0: FE MAC Ethernet address: 98:97:D1:xx:xx:xx
write file (/tmp/md5.txt) successfully!
The number of cache node is 5
Start to get customer running romfile.
compressedLen = 22493
compressedLen = 22493
compressedLen = 22493
[get_romfile_by_index]: original configuration length[84564]
[get_romfile_by_index]: new configuration length[84564]
Get current configuration #1 successfully.
Read current configuration...
Start to get customer default romfile.
It isn't MitraStar firmware, so can't get image version!!

from Defcfg_main
Data buffer not 16 bytes aligned: 8304010c
Data buffer not 16 bytes aligned: 8304090c
Data buffer not 16 bytes aligned: 8304110c
Data buffer not 16 bytes aligned: 8304190c
Data buffer not 16 bytes aligned: 8304210c
Data buffer not 16 bytes aligned: 8304290c
Data buffer not 16 bytes aligned: 8304310c
Data buffer not 16 bytes aligned: 8304390c
Data buffer not 16 bytes aligned: 8304410c
Data buffer not 16 bytes aligned: 8304490c
compressedLen = 22494
Get current configuration successfully.
Read default configuration...
sslca_verify!
Start to get customer default romfile.
It isn't MitraStar firmware, so can't get image version!!

from Defcfg_main
Data buffer not 16 bytes aligned: 8305010c
Data buffer not 16 bytes aligned: 8305090c
Data buffer not 16 bytes aligned: 8305110c
Data buffer not 16 bytes aligned: 8305190c
Data buffer not 16 bytes aligned: 8305210c
Data buffer not 16 bytes aligned: 8305290c
Data buffer not 16 bytes aligned: 8305310c
Data buffer not 16 bytes aligned: 8305390c
Data buffer not 16 bytes aligned: 8305410c
Data buffer not 16 bytes aligned: 8305490c
xDSL: xDSL down, possible reason: Not link up
compressedLen = 22494
Get current configuration successfully.
Read default configuration...
sslca_verify!
[romConvert_gvt_vdsl_write]: Start romconvert
[romConvert_gvt_vdsl_write]: End romconvert
ifconfig: br0: error fetching interface information: Device not found

Func:dhcp6sCall_write Line:22678 ipv6_start:1 ipv6_end:ffff
mrd.CountryCode = D0
Success to set CountryRegion by mrd country code.
mtd[readflash]:device=reservearea tclen=512 tcoffset=0
Unlocking reservearea ...
Reading from reservearea to /tmp/RT30xxEEPROM.bin ...
hotspotService_write: hsping pid is empty
tr181firewall_write
Can't open /etc/isp4.conf
Can't open /etc/isp5.conf
Can't open /etc/isp6.conf
Can't open /etc/isp7.conf
Can't open /etc/isp8.conf
Can't open /etc/isp9.conf
Can't open /etc/isp4.conf
Can't ope
Add CWMP pass through rules.n /etc/isp5.conf
Can't open /etc/isp6.conf
Can't open /etc/isp7.conf
Can't open /etc/isp8.conf
Can't open /etc/isp9.conf
Can't open /etc/isp4.conf
Can't open /etc/isp4.conf
Can't open /etc/isp5.conf
Can't open /etc/isp5.conf
Can't open /etc/isp6.conf
Can't open /etc/isp6.conf
Can't open /etc/isp7.conf
Can't open /etc/isp7.conf
Can't open /etc/isp8.conf
Can't open /etc/isp9.conf
Wrong interface type.
Wrong interface type.
Wrong interface type.
Wrong interface type.
Wrong interface type.
Wrong interface type.
Wrong application type.
insmod: cannot open module `/lib/modules/tc3162l2sar.ko': No such file or directory
sslca_write:get Frag Number failed!
killall: dropbear: no process killed
dropbear used greatest stack depth: 13616 bytes left
killall: boa: no process killed
vsProfile_write:182, getAttrValue() failed
vsProfileLine_write:575, getAttrValue() failed


EVENT_CFG_TOTAL_UPDATE



EVENT_CFG_TOTAL_UPDATE

read of forward table failed: No such device
read of forward table failed: No such device
read of forward table failed: No such device

Enabling SSL security system
SSL security system enabled[01/Jan/1970:00:00:07 +0000] boa: server version Boa/0.94.13
[01/Jan/1970:00:00:07 +0000] boa: server built Dec 11 2015 at 18:25:56.
[01/Jan/1970:00:00:07 +0000] boa: starting server pid=198, port 80
[getVoipProfileMark:2874], WanNode:  IfMarkStr:
ra0       no private ioctls.

read of forward table failed: No such device
read of forward table failed: No such device
File /proc/tc3162/adsl_stats content Opmode is worng
read of forward table failed: No such device
read of forward table failed: No such device
File /proc/tc3162/adsl_stats content Opmode is worng
read of forward table failed: No such device
read of forward table failed: No such device
File /proc/tc3162/adsl_stats content Opmode is worng
7510_debug: dmt_base_addr : bf900000
ADSL DMT initialization starting
Begin AdslTaskInit.....
End AdslTaskInit
Begin to  request IRQ 20
DMT:Succeed to request IRQ 20
Initializing ADSL F/W 5.6.9.0 ......
read of forward table failed: No such device
read of forward table failed: No such device
File /proc/tc3162/adsl_stats coInitializing ADSL F/W ........ done
ntent Opmode is worng
ANNEXA
The test lab:60
vlantag_drv_init
Not support Ethernet WAN, insmod tc3162_dmt.ko!
read of forward table failed: No such device
read of forward table failed: No such device
File /proc/tc3162/adsl_stats content Opmode is worng
insmod: cannot insert `/lib/modules/tc3162_dmt.ko': File exists (-1): File exists
TCSUPPORT_WLAN
TCSUPPORT_WLAN_MT7592
read of forward table failed: No such device
read of forward table failed: No such device
File /proc/tc3162/adsl_stats content Opmode is worng
PCI: Enabling device 0000:01:00.0 (0000 -> 0002)
Mirror/redirect action on
eth0: starting interface.
MT7510FE, PhyPart debug: tcPhyInit() in
MT7510Ge,Internal check flag: fgMT7510Ge_INT=0x0
PhyPart debug: tcPhyInit() in
read of forward table failed: No such device
read of forward table failed: No such device
File /proc/tc3162/adsl_stats content Opmode is worng
Ralink HW NAT Module Enabled
IP check use Black List
device eth0 entered promiscuous mode
Run write_wan_mac to generate mac.conf
First get MAC address=9897D1xxxxxx
File /proc/tc3162/adsl_stats content Opmode is worng
TCSUPPORT_WLAN: ifconfig
efuse_probe: efuse = 10000002
NVM is BIN mode
Cal Free IC!!
tssi_1_target_pwr_g_band = 32
jiffies=ffff933a, POLLING_MODE_DETECT_INTV=300
ifconfig used greatest stack depth: 13560 bytes left
device ra0 entered promiscuous mode
File /proc/tc3162/adsl_stats content Opmode is worng
##### mbss_cr_enable, BssId = 1
device ra1 entered promiscuous mode
##### mbss_cr_enable, BssId = 2
device ra2 entered promiscuous mode
##### mbss_cr_enable, BssId = 3
device ra3 entered promiscuous mode
TCSUPPORT_WLAN_WDS
Dying Gasp 0.31 init
oenmap 801200 oenmap2 0
TC3162 hardware watchdog initialized
telnetd: starting
  port: 23; login program: /bin/login
Thu Jan  1 00:00:00 UTC 2015
[01/Jan/2015:00:00:00 +0000] boa.c:1019 - unable to bind: Address already in use
start upgarde_fw
sh: cannot csh used greatest stack depth: 13400 bytes left
reate /proc/t========================insmod iptable_filter=======================
c3162/etherwan_mode: Directory nonexistent
insmod: cannot open module `/lib/modules/2.6.36/kernel/net/ipv4/netfilter/iptable_filter.ko': No such file or directory
chmod: /userfs/profile.cfg: Read-only file system
iptables: Chain already exists
chmod: /userfs/profile.cfg: Read-only file system
ip6tables used greatest stack depth: 13080 bytes left
ip6tables: No chain/target/match by that name.
ip6tables: No chain/target/match by that name.
ip6tables: No chain/target/match by that name.
ip6tables: No chain/target/match by that name.
ip6tables: No chain/target/match by that name.
ip6tables: No chain/target/match by that name.
ip6tables: No chain/target/match by that name.
ip6tables: No chain/target/match by that name.
ip6tables: No chain/target/match by that name.
ip6tables: No chain/target/match by that name.
ip6tables: No chain/target/match by that name.
ip6tables: No chain/target/match by that name.
iptables: Protocol wrong type for socket
SIOCDIFADDR: Cannot assign requested address
br0: port 2(ra0) entering forwarding state
br0: port 2(ra0) entering forwarding state
br0: port 1(eth0) entering forwarding state
br0: port 1(eth0) entering forwarding state
done
Enter set first loop, IP addr by Dhcp6sradvd starting
Radvd function activated!
killall: dnsmasq: no process killed
Open file OK fd=8
shwarning, Failure parsing line 7 of /etc/udhcpd.conf
: /userfs/bin/dproxy: not found
warning, Failure parsing line 12 of /etc/udhcpd.conf
warning, Failure parsing line 13 of /etc/udhcpd.conf
info, udhcpd (v0.9.9-pre) started
warning, Failure parsing line 8 of /etc/udhcpd_conserpool1.conf
warning, Failure parsing line 15 of /etc/udhcpd_conserpool1.conf
warning, Failure parsing line 16 of /etc/udhcpd_conserpool1.conf
warning, Failure parsing line 17 of /etc/udhcpd_conserpool1.conf
warning, Failure parsing line 18 of /etc/udhcpd_conserpool1.conf
warning, Unable to open /etc/udhcp_lease for reading
read WLAN driver from rt_device failed,set with default value!
killall: wscd: no process killed
iptables: Bad rule (does a matching rule exist in that chain?)
iptables: Bad rule (does a matching rule exist in that chain?)
ip6tables: Bad rule (does a matching rule exist in that chain?).
ip6tables: Bad rule (does a matching rule exist in that chain?).
gre_boot: Create br1 and move ra1 from br0 to br1
device ra1 left promiscuous mode
br0: port 3(ra1) entering disabled state
device ra1 entered promiscuous mode
tr181firewall_boot
iptables: Bad rule (does a matching rule exist in that chain?)
chmod: /userfs/profile.cfg: Read-only file system
iptables: No chain/target/match by that name
iptables: Bad rule (does a matching rule exist in that chain?)
iptables: No chain/target/match by that name
iptables: No chain/target/match by that name
iptables: No chain/target/match by that name
iptables v1.3.8: Couldn't find target `TR181FrwlInput'

Try `iptables -h' or 'iptables --help' for more information.
iptables v1.3.8: Couldn't find target `TR181FrwlOutput'

Try `iptables -h' or 'iptables --help' for more information.
iptableip used greatest stack depth: 12976 bytes left
s v1.3.8: Couldn't find target `TR181FrwlForward'

Try `iptables -h' or 'iptables --help' for more information.
iptables: No chain/target/match by that name
iptables: No chain/target/match by that name
iptables: No chain/target/match by that name
iptables: Bad rule (does a matching rule exist in that chain?)
chmod: /userfs/profile.cfg: Read-only file system
iptables: Chain already exists
iptables: Chain already exists
iptables: Chain already exists
sh: /tmp/etc/tr181firewall_chain0.sh: not found
sh: /tmp/etc/tr181firewall_chain1.sh: not found
sh: /tmp/etc/tr181firewall_chain2.sh: not found
sh: /tmp/etc/tr181firewall_chain3.sh: not found
sh: /tmp/etc/tr181firewall_chain4.sh: not found
sh: /tmp/etc/tr181firewall_chain5.sh: not found
sh: /tmp/etc/tr181firewall_chain6.sh: not found
sh: /tmp/etc/tr181firewall_chain7.sh: not found
iptables v1.3.8: Couldn't find target `TR181_FrwlChain1Input'

Try `iptables -h' or 'iptables --help' for more information.
iptables v1.3.8: Couldn't find target `TR181_FrwlChain1Output'

Try `iptables -h' or 'iptables --help' for more information.
iptables v1.3.8: Couldn't find target `TR181_FrwlChain1Forward'

Try `iptables -h' or 'iptables --help' for more information.
ip6tables v1.4.10: Couldn't find target `TR181_FrwlChain1Input'

Try `ip6tables -h' or 'ip6tables --help' for more information.
ip6tables v1.4.10: Couldn't find target `TR181_FrwlChain1Output'

Try `ip6tables -h' or 'ip6tables --help' for more information.
ip6tables v1.4.10: Couldn't find target `TR181_FrwlChain1Forward'

Try `ip6tables -h' or 'ip6tables --help' for more information.
iptables v1.3.8: Couldn't find target `TR181_FrwlChain0Input'

Try `iptables -h' or 'iptables --help' for more information.
iptables v1.3.8: Couldn't find target `TR181_FrwlChain0Output'

Try `iptables -h' or 'iptables --help' for more information.
iptables v1.3.8: Couldn't find target `TR181_FrwlChain0Forward'

Try `iptables -h' or 'iptables --help' for more information.
ip6tables v1.4.10: Couldn't find target `TR181_FrwlChain0Input'

Try `ip6tables -h' or 'ip6tables --help' for more information.
ip6tables v1.4.10: Couldn't find target `TR181_FrwlChain0Output'

Try `ip6tables -h' or 'ip6tables --help' for more information.
ip6tables v1.4.10: Couldn't find target `TR181_FrwlChain0Forward'

Try `ip6tables -h' or 'ip6tables --help' for more information.
chmod: /userfs/profile.cfg: Read-only file system
iptables: No chain/target/match by that name
chmod: /userfs/profile.cfg: Read-only file system
iptables: Chain already exists
iptables: Chain already exists
iptables: Chain already exists
iptables: Chain already exists
iptables: Chain already exists
iptables: Chain already exists
iptables: No chain/target/match by that name
iptables: No chain/target/match by that name
iptables: No chain/target/match by that name
iptables: No chain/target/match by that name
create_fullnat_chain_boot

Enter cwmp boot, we will start tr69 Process
/etc/syslog.conf: 6: WAN-DHCP: not found
/etc/syslog.conf: 7: xDSL: not found
/etc/syslog.conf: 8: ETHER: not found
/etc/syslog.conf: 9: PPP: not found
/etc/syslog.conf: 10: SystemMainten: not found
/etc/syslog.conf: 11: RemoteMGNT: not found
/etc/syslog.conf: 12: TR069: not found
/etc/syslog.conf: 13: NTP: not found
/etc/syslog.conf: 14: DDNS: not found
/etc/syslog.conf: 15: NAT: not found
/etc/syslog.conf: 16: Firewall: not found
/etc/syslog.conf: 17: DHCP-Srv: not found
/etc/syslog.conf: 18: WLAN: not found
/etc/syslog.conf: 19: INTERNET: not found
/etc/syslog.conf: 20: UPNP: not found
/etc/syslog.conf: 21: DoS: not found
/etc/syslog.conf: 22: VoIP: not found
/etc/syslog.conf: 23: IGMP: not found
insmod: cinsmod used greatest stack depth: 12660 bytes left
annot insert `/lib/modules/hw_nat.ko': File exists (-1): File exists
Segmentation fault
iptables: No chain/target/match by that name
iptables: No chain/target/match by that name
iptables: No chain/target/match by that name
iptables: No chain/target/match by that name
ip6tables: No chain/target/match by that name.
ip6tables: No chain/target/match by that name.
ip6tables: No chain/target/match by that name.
ip6tables: No chain/target/match by that name.
Daemon Successfully forked (pid: 3776)
rmmod: xt_layer7: No such file or directory
/etc/lanAlias0.conf
ftp switch turn on
sip switch turn off
h323 switch turn on
rtsp switch turn on
l2tp switch turn on,sw_state=
iptables: Bad rule (does a matching rule exist in that chain?)
ipsec switch turn on,sw_state=
iptables: Bad rule (does a matching rule exist in that chain?)
route: SIOC[ADD|DEL]RT: File exists
It isn't MitraStar firmware, so can't get image version!!
File /proc/tc3162/adsl_stats content Opmode is worng
dnsroute_execute: send SIGDNSMASQ to pid=115


===signal===[SignalHandle@15117] rcv sig:38 gi_BitMapForSignal:0x2.
===signal===[SignalCheck@15179] iLoop:1 sig:38. Run signal handler:0x4b6a14.
four ports
SIOCGIFFLAGS: No such device
interface eth0.1 does not exist!
sh: vconfig: not found
SIOCGIFFLAGS: No such device
interface eth0.2 does not exist!
sh: vconfig: not found
SIOCGIFFLAGS: No such device
Can't open /etc/isp8_4.conf
Can't open /etc/isp8_4.conf
Can't open /etc/isp8_5.conf
interface eth0.3 does not exist!
Can't open /etc/isp8_5.conf
sh: vconfig: not found
Can't open /etc/isp8_6.conf
Can't open /etc/isp8_6.conf
Can't open /etc/isp8_7.conf
Can't open /etc/isp8_7.conf
SIOCGIFFLAGS: No such device
DNSROUTE: reading dns route entry 0
DNSROUTE: reading dns route entry 1
interface eth0.4 does not exist!
sh: vconfig: not found
device eth0 is already a member of a bridge; can't enslave it to bridge br0.
File /proc/tc3162/adsl_stats content Opmode is worng
Added VLAN with VID == 1 to IF -:eth0:-
WARNING:  VLAN 1 does not work with many switches,
consider another number if you have problems.
device eth0.1 entered promiscuous mode
br0: port 3(eth0.1) entering forwarding state
br0: port 3(eth0.1) entering forwarding state
Added VLAN with VID == 2 to IF -:eth0:-
device eth0.2 entered promiscuous mode
br0: port 6(eth0.2) entering forwarding state
br0: port 6(eth0.2) entering forwarding state
Added VLAN with VID == 3 to IF -:eth0:-
device eth0.3 entered promiscuous mode
br0: port 7(eth0.3) entering forwarding state
br0: port 7(eth0.3) entering forwarding state
Added VLAN with VID == 4 to IF -:eth0:-
0eabcec1c08e988a3327bdc3995af6ad==>getMacEntryByIndex(): no sta existance
==>getMacEntryByIndex(): no sta existance
==>getMacEntryByIndex(): no sta existance
==>getMacEntryByIndex(): no sta existance
==>getMacEntryByIndex(): no sta existance
==>getMacEntryByIndex(): no sta existance
==>getMacEntryByIndex(): no sta existance
==>getMacEntryByIndex(): no sta existance
device eth0.4 entered promiscuous mode
br0: port 8(eth0.4) entering forwarding state
br0: port 8(eth0.4) entering forwarding state
br0: port 1(eth0) entering forwarding state
log cicmd 0 (wan  dmt2  set  largeD  2  )
 BusyBox v1.00 (2015.12.11-10:24+0000) multi-call binary

Usage: taskset [OPTIONS] [mask] [pid | command [arg]...]

radvd parameter activated by exec!
radvd starting
<<< VoIP Init >>>
File /proc/tc3162/adsl_stats content Opmode is worng
PCM V2.4 (Apr 28 2015 16:50:55)
init mod-slic3
AddTimer: get now_time for first time

Silabs SLIC type selected by SW makefile compile option


* Si32176 * deviceVerify ProSLIC_Version 7.3.2

channel = 0, REG_0  = 0xa2
reversion  = 0x2
si32176_deviceVerify Success!

DEVICE_VERIFY ret:1
Init fxsNum(1) + fxoNum(0) = deviceNum(1)

si32176NumProslic = 1
si32176NumChannel = 1
si32176deviceId = 0
ProSLIC_createControlInterface = 0
ProSLIC_createDevice = 0
ProSLIC_createChannel = 0
ProSLIC_SWInitChan = 0
chanPvt[0].chanType 1
chanPvt[0].chipType 6
File /proc/tc3162/adsl_stats content Opmode is worng
File /proc/tc3162/adsl_stats content Opmode is worng
File /proc/tc3162/adsl_stats content Opmode is worng
ThreadedTimerCheck: get last for first time
File /proc/tc3162/adsl_stats content Opmode is worng
init mod-ksocket
File /proc/tc3162/adsl_stats content Opmode is worng
init mod-acodec
init mod-foip3

===============================
|| MTK DSP init successfully ||
===============================

File /proc/tc3162/adsl_stats content Opmode is worng
dbgTool_init init v2.0
File /proc/tc3162/adsl_stats content Opmode is worng
pid 4125's current affinity mask: 0
pid 4125's new affinity mask: 8
pid 4122's current affinity mask: 0
pid 4122's new affinity mask: 8
pid 4146's current affinity mask: 0
pid 4146's new affinity mask: 8
pid 4144's current affinity mask: 0
pid 4144's new affinity mask: 8
pid 4145's current affinity mask: 0
pid 4145's new affinity mask: 8
Restarting
killall: voiceApp: no process killed
killall: mm.exe: no process killed
killall: icf.exe: no process killed
<<< VoIP Init Finished >>>
G.inp mode
done
File /proc/tc3162/adsl_stats content Opmode is worng
G.inp mode
driver version: 4.0.0.8
 FwVer:5.6.9.0_A_A60901 HwVer:T14.F7_0.2
xDSL      module is OK
WIFI      module is OK
ETH0      interface is OK
RA0       interface is OK
BR0       interface is OK
APP       tcapi is OK
<<< Device is ready for use >>>
ADAM Init Success
slic_kpc_ioctl: cid:0 cad_num:3
DSP activated success
slic_kpc_ioctl: cid:0 cad_num:3
DSP activated success
DSP set event handler success
DSP config country 44 success

ICF:Exit from function(): icf_sm_set_error_hdlr, with retval 1
ICF:Exit from function(): icf_sm_process_mesg, with retval 1
ICF:Entered function(): icf_mrm_recv_msg
ICF:Entered function(): icf_dbm_get_port_data
ICF:Exit from function(): icf_dbm_get_port_data, with retval 1
[ES_TRACE]:MSG received successfuly from App: 27 bytes

*******================================================
voiceApp:-   GET IP ADDRESS FAIL!
User Agent related info = MitraStar DSL-2401HN-T1C-GV V1.14(WQR.0)b5
**================================================
**ICF_PRINT_HDR_DATA_START**************
API_ID = 158  : ICF_SET_TRACE_REQ
SOURCE_ID =107  :  DEST_ID =6  :  APP_ID =1  :CALL_ID= 65535
API_LENGTH= 27
********voiceApp:-   GET IP ADDRESS FAIL!
***ICF_PRINT_HDR_DATA_END***********


ICF:Exit from function(): icf_mrm_recv_msg, with retval 1
IvoiceApp:-   GET IP ADDRESS FAIL!
CF:Entered function(): icf_cfg_fetch_app_conf
ICF:Entered function(): icf_sm_process_mesg
ICF:EnteredvoiceApp:-   GET IP ADDRESS FAIL!
 fNo available interface for voice service
unvoiceApp:-   GET IP ADDRESS FAIL!
ction(): icf_sm_api_to_event
ICF:Exit from function(): icf_sm_api_to_event, with retval 1
ICF:Entered fuNo available interface for voice service
ncvoiceApp:-   GET IP ADDRESS FAIL!
tiNo available interface for voice service
ovoiceApp:-   GET IP ADDRESS FAIL!
n(No available interface for voice service
):voiceApp:-   GET IP ADDRESS FAIL!
 icf_sm_set_trace_req_hdlr
Agradecimentos

Pessoas envolvidas em discussões, dicas ou bate papo em geral. Lista em ordem alfabética.

modem/dsl-2401hn-t1c-gv.txt · Última modificação: 2016/07/03 19:16 por tripleoxygen
