Arcadyan VRV7006AW22-A-GR

Disclaimer

Modifique o dispositivo somente se for o proprietário. A maioria destes são fornecidos pelo seu ISP em regime de comodato como parte do serviço de internet. Não faça modificações caso o aparelho não seja seu.

Todos os métodos de desbloqueio e material sobre modificações foram criados pelo O3 Labs e disponibilizados GRATUITAMENTE desde o dia de sua elaboração. Espalhem esta informação e ajudem a evitar que PICARETAS roubem e vendam estas informações por aí, seja no Mercado Livre ou por quaisquer outros meios.

Hardware

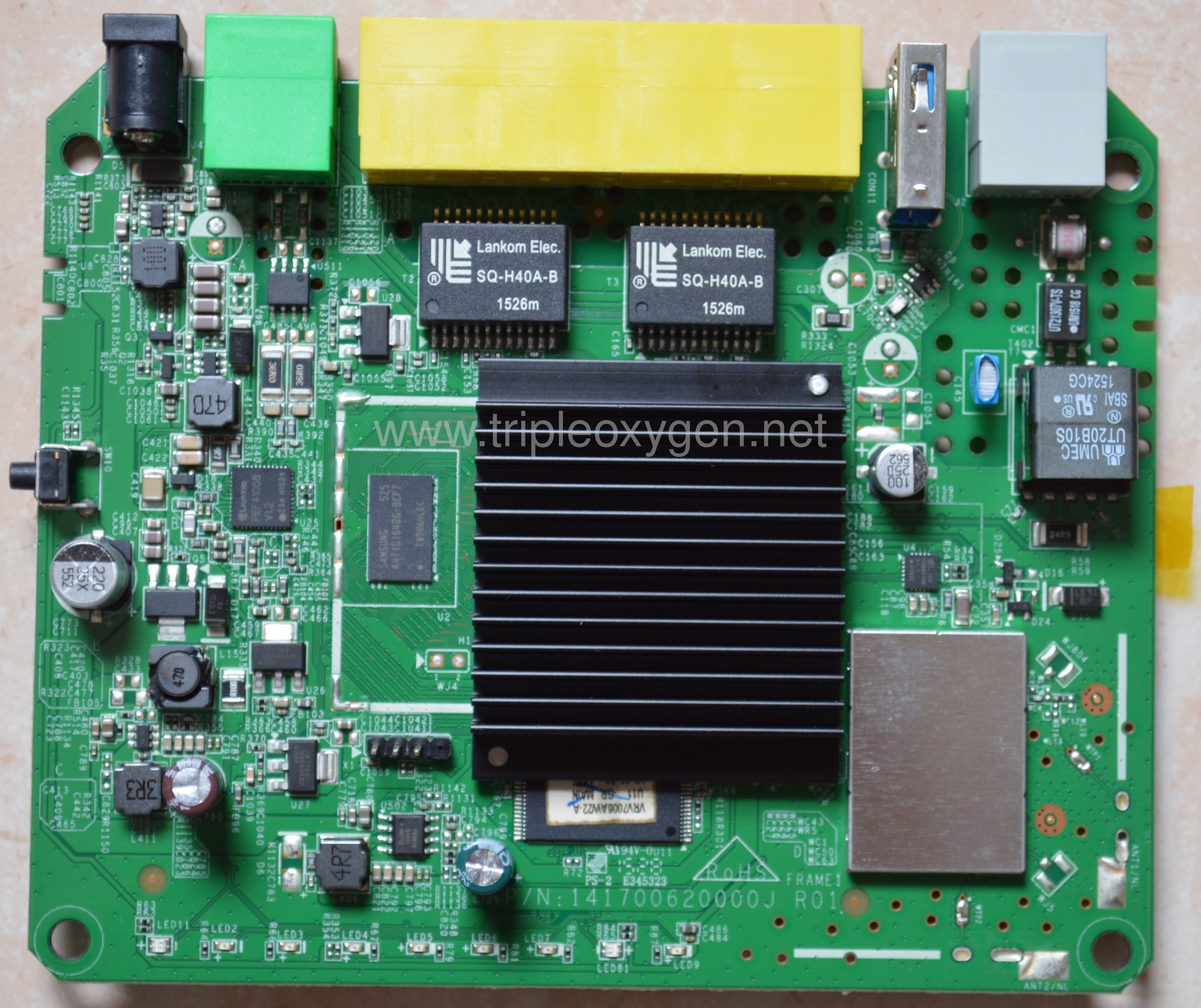

Clique na foto para abrir o álbum.


SoC PSB 80221 / VRX220 - Lantiq VDSL2/ADSL2/2+ DSL Gateway Solution ( MIPS 34Kc, 500 MHz )
RAM K4T1G164QG-BCF7 - Samsung 1 Gbit (128 MB) DDR2 SDRAM
Flash MX30LF1GE8AB - MXIC 1 Gbit (128 MB) NAND
Switch 4 ports 10/100 - Integrado ao SoC
USB 1 x 2.0
Wireless BCM43217 - Broadcom 2×2 802.11b/g/n / 2.4 GHz
FXS 1 ( Lantiq PEF 41068 )
xDSL Line Driver PSB 80108 - Lantiq
HPNA Não
Serial Sim
JTAG ?

Bootlog

ROM VER: 1.1.4
CFG 06
NAND
NAND Read OK

ROM VER: 1.1.4
CFG 06
NAND
NAND Read OK
nand_read_page - 0000000c

DDR autotuning Rev 1.0
DDR size from 0xa0000000 - 0xa7ffffff
DDR check ok... start booting...


ROM VER: 1.1.4
CFG 06
NAND
NAND Read OK
nand_read_page - 0000000c

DDR autotuning Rev 1.0
DDR size from 0xa0000000 - 0xa7ffffff
DDR check ok... start booting...



U-Boot 2010.06-00032-gdf2992a-dirty-LANTIQ-v-2.2.89-1.00.03 (Jun 22 2015 - 15:25:48)

CLOCK CPU 500M RAM 250M
DRAM:  128 MiB
NAND:  ONFI flash detected
ONFI param page 0 valid
NAND device: Manufacturer ID: 0xc2, Chip ID: 0xf1 (MXIC MX30LF1GE8AB)
128 MiB
Bad block table found at page 65472, version 0x01
Bad block table found at page 65408, version 0x01
nand_read_bbt: Bad block at 0x000004620000
In:    serial
Out:   serial
Err:   serial
Net:   Internal phy(FE) firmware version: 0xc40d
vr9 Switch

Type "run flash_nfs" to mount root filesystem over NFS

call arc_gpio_init !!!
Hit any key to stop autoboot:  1  0
bootup_ok=[1]
Writing to Nand... done
Creating 1 MTD partitions on "nand0":
0x000000440000-0x000007c40000 : "mtd=4"
UBI: attaching mtd1 to ubi0
UBI: physical eraseblock size:   131072 bytes (128 KiB)
UBI: logical eraseblock size:    129024 bytes
UBI: smallest flash I/O unit:    2048
UBI: sub-page size:              512
UBI: VID header offset:          512 (aligned 512)
UBI: data offset:                2048
UBI: attached mtd1 to ubi0
UBI: MTD device name:            "mtd=4"
UBI: MTD device size:            120 MiB
UBI: number of good PEBs:        959
UBI: number of bad PEBs:         1
UBI: max. allowed volumes:       128
UBI: wear-leveling threshold:    256
UBI: number of internal volumes: 1
UBI: number of user volumes:     5
UBI: available PEBs:             187
UBI: total number of reserved PEBs: 772
UBI: number of PEBs reserved for bad PEB handling: 9
UBI: max/mean erase counter: 9/0
Volume kernelA found at volume id 0
read 0 bytes from volume 0 to a4000000(buf address)
Read [6322176] bytes
ubi_error_number=[0]
Volume sec_boot found at volume id 4
read 0 bytes from volume 4 to af000000(buf address)
Read [1161216] bytes
## Starting application at 0xAF000000 ...
<                      sec_boot:   31>: Decrypt kernel at a4000000
<                      sec_boot:   49>: kernel size = 1c0000
<                   arc_img_dec:   47>: data = a4000004
<                   arc_img_dec:   54>:
<                   arc_img_dec:   75>:
<                   arc_img_dec:   83>:
<                   arc_img_dec:   89>:
<                   arc_img_dec:  105>:
## Application terminated, rc = 0x0
## Booting kernel from Legacy Image at 80800000 ...
   Image Name:   MIPS LTQCPE Linux-2.6.32.42
   Created:      2015-06-12  10:09:54 UTC
   Image Type:   MIPS Linux Kernel Image (lzma compressed)
   Data Size:    1834944 Bytes = 1.7 MiB
   Load Address: 80002000
   Entry Point:  800061b0
   Verifying Checksum ... OK
   Uncompressing Kernel Image ... OK

Starting kernel ...

Lantiq xDSL CPE VR9
mips_hpt_frequency = 250000000, counter_resolution = 2
[    0.000000] Linux version 2.6.32.42 (anne_liang@sw6-builder.arcadyan.com.tw) (gcc version 4.3.3 (GCC) ) #1 Fri Jun 12 16:40:56 CST 2015
[    0.000000] phym = 08000000, mem = 07f00000, max_pfn = 00007f00
[    0.000000] Reserving memory for CP1 @0xa7f00000, size 0x00100000
[    0.000000] CPU revision is: 00019556 (MIPS 34Kc)
[    0.000000] Determined physical RAM map:
[    0.000000] User-defined physical RAM map:
[    0.000000]  memory: 07f00000 @ 00000000 (usable)
[    0.000000] Initrd not found or empty - disabling initrd
[    0.000000] Zone PFN ranges:
[    0.000000]   Normal   0x00000000 -> 0x00007f00
[    0.000000] Movable zone start PFN for each node
[    0.000000] early_node_map[1] active PFN ranges
[    0.000000]     0: 0x00000000 -> 0x00007f00
[    0.000000] Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 32258
[    0.000000] Kernel command line: ubi.mtd=linux rootfsname=rootfsA rw rootfstype=ubifs ip=192.168.1.1:192.168.1.10::::eth0:on console=ttyS0,115200 ethaddr=xx:xx:xx:xx:xx:xx phym=128M mem=127M wlanm= panic=1 mtdparts=ifx_nand:1m(uboot),256k(ubootconfig),2m(glbcfg),1m(board_data),120m(linux),-(res) vpe1_load_addr=0x87f00000 vpe1_mem=1M init=/sbin/ltq_preinit root=ubi0:rootfsA active_bank=A update_chk=0 ubootver=U-Boot-2010.06-00032-gdf2992a-dirty-LANTIQ-v-2.2.89-1.00.03
[    0.000000] PID hash table entries: 512 (order: -1, 2048 bytes)
[    0.000000] Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
[    0.000000] Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
[    0.000000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes.
[    0.000000] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
[    0.000000] Writing ErrCtl register=00058100
[    0.000000] Readback ErrCtl register=00058100
[    0.000000] Memory: 122932k/130048k available (3821k kernel code, 6944k reserved, 1274k data, 204k init, 0k highmem)
[    0.000000] Hierarchical RCU implementation.
[    0.000000] NR_IRQS:185
[    0.000000] Lantiq ICU driver, version 3.0.1, (c) 2001-2013 Lantiq Deutschland GmbH
[    0.000000] console [ttyS0] enabled
[    0.020000] Calibrating delay loop... 332.59 BogoMIPS (lpj=1662976)
[    0.240000] Security Framework initialized
[    0.240000] Mount-cache hash table entries: 512
[    0.250000] NET: Registered protocol family 16
[    0.580000] Lantiq PCIe Root Complex driver, version 2.0.0, (c) 2001-2013 Lantiq Deutschland GmbH
[    0.600000] bio: create slab <bio-0> at 0
[    0.610000] SCSI subsystem initialized
[    0.610000] usbcore: registered new interface driver usbfs
[    0.610000] usbcore: registered new interface driver hub
[    0.620000] usbcore: registered new device driver usb
[    0.620000] ifx_pcie_rc_class_early_fixup port 0: fixed pcie host bridge to pci-pci bridge
[    0.630000] pci 0000:00:00.0: PME# supported from D0 D3hot
[    0.630000] pci 0000:00:00.0: PME# disabled
[    0.640000] pci 0000:00:00.0: PCI bridge, secondary bus 0000:01
[    0.640000] pci 0000:00:00.0:   IO window: disabled
[    0.650000] pci 0000:00:00.0:   MEM window: 0x1c000000-0x1c0fffff
[    0.650000] pci 0000:00:00.0:   PREFETCH window: disabled
[    0.660000] NET: Registered protocol family 8
[    0.660000] NET: Registered protocol family 20
[    0.660000] Switching to clocksource MIPS
[    0.670000] NET: Registered protocol family 2
[    0.670000] IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
[    0.680000] TCP established hash table entries: 4096 (order: 3, 32768 bytes)
[    0.690000] TCP bind hash table entries: 4096 (order: 2, 16384 bytes)
[    0.690000] TCP: Hash tables configured (established 4096 bind 4096)
[    0.700000] TCP reno registered
[    0.700000] NET: Registered protocol family 1
[    0.710000] gptu: totally 6 16-bit timers/counters
[    0.710000] gptu: misc_register on minor 63
[    0.710000] gptu: succeeded to request irq 118
[    0.720000] gptu: succeeded to request irq 119
[    0.720000] gptu: succeeded to request irq 120
[    0.730000] gptu: succeeded to request irq 121
[    0.730000] gptu: succeeded to request irq 122
[    0.740000] gptu: succeeded to request irq 123
[    0.740000] IFX DMA driver, version ifxmips_dma_core.c:v1.1.5
[    0.740000] ,(c)2009 Infineon Technologies AG
[    0.750000] Lantiq CGU driver, version 1.1.38, (c) 2001-2013 Lantiq Deutschland GmbH
[    0.760000] vpe1_mem = 100000
[    0.760000] Wired TLB entries for Linux read_c0_wired() = 0
[    0.770000] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.770000] Registering mini_fo version $Id$
[    0.780000] JFFS2 version 2.2 (NAND) (SUMMARY) (ZLIB) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[    0.790000] msgmni has been set to 240
[    0.790000] Infineon Technologies DEU driver version 2.0.0
[    0.800000] Lantiq Technologies DEU Driver version 2.0.0
[    0.800000] IFX DEU DES initialized (multiblock).
[    0.810000] Lantiq Technologies DEU Driver version 2.0.0
[    0.810000] IFX DEU AES initialized (multiblock).
[    0.820000] Infineon Technologies DEU driver version 2.0.0
[    0.820000] IFX DEU ARC4 initialized (multiblock).
[    0.830000] Infineon Technologies DEU driver version 2.0.0
[    0.830000] IFX DEU SHA1 initialized.
[    0.840000] Infineon Technologies DEU driver version 2.0.0
[    0.840000] IFX DEU MD5 initialized.
[    0.850000] Infineon Technologies DEU driver version 2.0.0
[    0.850000] IFX DEU SHA1_HMAC initialized.
[    0.860000] Infineon Technologies DEU driver version 2.0.0
[    0.860000] IFX DEU MD5_HMAC initialized.
[    0.870000] DEU driver initialization complete!
[    0.870000] io scheduler noop registered (default)
[    0.880000] HDLC line discipline maxframe=4096
[    0.890000] N_HDLC line discipline registered.
[    0.890000] ifx_pmu_init: Major 252
[    0.890000] Lantiq PMU driver, version 1.2.6, (c) 2001-2013 Lantiq Deutschland GmbH
[    0.900000] Lantiq GPIO driver, version 1.3.2, (c) 2001-2013 Lantiq Deutschland GmbH
[    0.910000] Infineon Technologies RCU driver version 1.1.1
[    0.910000] Lantiq LED Controller driver, version 1.1.3, (c) 2001-2013 Lantiq Deutschland GmbH
[    0.920000] Lantiq (VRX) DSL CPE MEI driver, version 1.4.4, (c) 2013 Lantiq Deutschland GmbH
[    0.930000] ttyS0 at MMIO 0xbe100c00 (irq = 105) is a IFX_ASC
[    0.940000] Register ASC (UART) to PMCU.
[    1.000000] Lantiq ASC (UART) driver, version 1.0.14, (c) 2001-2013 Lantiq Deutschland GmbH
[    1.010000] brd: module loaded
[    1.020000] loop: module loaded
[    1.020000] ifx_nand_init
[    1.020000] Probe for NAND flash...
[    1.020000] Checking if ONFI complient
[    1.030000] ONFI param page 0 valid
[    1.030000] ONFI flash detected, val i = 0
[    1.030000] writesize: 2048, erasesize: 131072, chipsize: 134217728
[    1.040000] NAND device: Manufacturer ID: 0xc2, Chip ID: 0xf1 (MXIC NAND 128MiB 3,3V 8-bit)
[    1.050000] Scanning device for bad blocks
[    1.080000] Bad eraseblock 561 at 0x000004620000
[    1.110000] 6 cmdlinepart partitions found on MTD device ifx_nand
[    1.110000] Creating 6 MTD partitions on "ifx_nand":
[    1.110000] 0x000000000000-0x000000100000 : "uboot"
[    1.120000] 0x000000100000-0x000000140000 : "ubootconfig"
[    1.130000] 0x000000140000-0x000000340000 : "glbcfg"
[    1.130000] 0x000000340000-0x000000440000 : "board_data"
[    1.140000] 0x000000440000-0x000007c40000 : "linux"
[    1.140000] 0x000007c40000-0x000008000000 : "res"
[    1.150000] UBI: attaching mtd4 to ubi0
[    1.150000] UBI: physical eraseblock size:   131072 bytes (128 KiB)
[    1.160000] UBI: logical eraseblock size:    129024 bytes
[    1.160000] UBI: smallest flash I/O unit:    2048
[    1.170000] UBI: sub-page size:              512
[    1.170000] UBI: VID header offset:          512 (aligned 512)
[    1.180000] UBI: data offset:                2048
[    1.380000] UBI: attached mtd4 to ubi0
[    1.380000] UBI: MTD device name:            "linux"
[    1.390000] UBI: MTD device size:            120 MiB
[    1.390000] UBI: number of good PEBs:        959
[    1.400000] UBI: number of bad PEBs:         1
[    1.400000] UBI: max. allowed volumes:       128
[    1.410000] UBI: wear-leveling threshold:    4096
[    1.410000] UBI: number of internal volumes: 1
[    1.420000] UBI: number of user volumes:     5
[    1.420000] UBI: available PEBs:             187
[    1.430000] UBI: total number of reserved PEBs: 772
[    1.430000] UBI: number of PEBs reserved for bad PEB handling: 9
[    1.440000] UBI: max/mean erase counter: 9/0
[    1.440000] UBI: image sequence number: 0
[    1.450000] Gluebi: Found kernel commandline option 'rootfsname=rootfsA'
[    1.450000] UBI: background thread "ubi_bgt0d" started, PID 220
[    1.460000] Gluebi: mtd 'rootfsA' set to be root filesystem
[    1.470000] Lantiq SSC driver, version 2.4.2, (c) 2001-2013 Lantiq Deutschland GmbH
[    1.470000] Lantiq SPI EERPOM driver, version 1.1.2, (c) 2001-2013 Lantiq Deutschland GmbH
[    1.480000] PPP generic driver version 2.4.2
[    1.490000] PPP Deflate Compression module registered
[    1.490000] PPP BSD Compression module registered
[    1.500000] PPP MPPE Compression module registered
[    1.500000] NET: Registered protocol family 24
[    1.510000] PPPoL2TP kernel driver, V1.0
[    1.510000] IMQ driver loaded successfully.
[    1.520000] 	Hooking IMQ before NAT on PREROUTING.
[    1.520000] 	Hooking IMQ after NAT on POSTROUTING.
[    1.530000] IFX SWITCH API, Version 1.2.6
[    1.530000] SWAPI: Registered character device [switch_api] with major no [81]
[    1.540000] Switch API: PCE MicroCode loaded !!
[    1.540000]
[    1.540000]  GPHY:!!!!  chip-ID :4, chipID.family_ver:2
[    1.550000] Init GPHY Driver for A12 !!
[    1.550000] Init GPHY Driver for A12 !!
[    1.670000] GPHY FIRMWARE LOAD SUCCESSFULLY AT ADDR (FE MODE) : 80554000
[    2.690000] IFX GPHY driver FE Mode, version ifxmips_xrx_gphy: V1.1.1 - Firmware: c434
[    3.540000] GPHY LED poll thread created..
[    3.540000] GPHY RMON poll thread created..
[    3.540000] res = 87998800
[    3.550000] Registered led device: 107
[    3.550000] Registered led device: 111
[    3.550000] Registered led device: 106
[    3.560000] start 8785fab8 ..
[    3.560000] start 878ac9b8 ..
[    3.570000] Registered led device: 108
[    3.570000] Registered led device: 110
[    3.570000] Registered led device: 117
[    3.580000] Registered led device: 113
[    3.580000] Registered led device: 116
[    3.580000] Registered led device: 115
[    3.590000] Registered led device: 104
[    3.590000] Registered led device: 114
[    3.600000] Lantiq LED driver, version 1.1.4, (c) 2001-2013 Lantiq Deutschland GmbH
[    3.600000] Mirror/redirect action on
[    3.610000] u32 classifier
[    3.610000]     Performance counters on
[    3.610000]     input device check on
[    3.620000]     Actions configured
[    3.620000] Netfilter messages via NETLINK v0.30.
[    3.630000] nf_conntrack version 0.5.0 (1923 buckets, 7692 max)
[    3.630000] CONFIG_NF_CT_ACCT is deprecated and will be removed soon. Please use
[    3.640000] nf_conntrack.acct=1 kernel parameter, acct=1 nf_conntrack module option or
[    3.650000] sysctl net.netfilter.nf_conntrack_acct=1 to enable it.
[    3.650000] ctnetlink v0.93: registering with nfnetlink.
[    3.660000] nf_conntrack_rtsp v0.6.21 loading
[    3.660000] xt_time: kernel timezone is -0000
[    3.670000] IPv4 over IPv4 tunneling driver
[    3.670000] GRE over IPv4 tunneling driver
[    3.690000] ip_nat_rtsp v0.6.21 loading
[    3.690000] ip_tables: (C) 2000-2006 Netfilter Core Team
[    3.690000] TCP cubic registered
[    3.700000] Initializing XFRM netlink socket
[    3.700000] NET: Registered protocol family 10
[    3.730000] ip6_tables: (C) 2000-2006 Netfilter Core Team
[    3.730000] NET: Registered protocol family 17
[    3.730000] NET: Registered protocol family 15
[    3.740000] Ebtables v2.0 registered
[    3.740000] NET: Registered protocol family 8
[    3.750000] atmpvc_init() failed with -17
[    3.750000] lec.c: Jun 12 2015 16:35:15 initialized
[    3.760000] mpc.c: Jun 12 2015 16:35:08 initialized
[    3.760000] KOAM is loaded successfully.
[    3.760000] 802.1Q VLAN Support v1.8 Ben Greear <greearb@candelatech.com>
[    3.770000] All bugs added by David S. Miller <davem@redhat.com>
[    3.830000] UBIFS: recovery needed
[    3.890000] UBIFS: recovery completed
[    3.890000] UBIFS: mounted UBI device 0, volume 1, name "rootfsA"
[    3.900000] UBIFS: file system size:   40771584 bytes (39816 KiB, 38 MiB, 316 LEBs)
[    3.900000] UBIFS: journal size:       8128512 bytes (7938 KiB, 7 MiB, 63 LEBs)
[    3.910000] UBIFS: media format:       w4/r0 (latest is w4/r0)
[    3.920000] UBIFS: default compressor: lzo
[    3.920000] UBIFS: reserved for root:  0 bytes (0 KiB)
[    3.930000] VFS: Mounted root (ubifs filesystem) on device 0:10.
[    3.930000] Freeing unused kernel memory: 204k freed
[    3.940000] Please be patient, while OpenWrt loads ...
arca.dbus.mng: is ready
agent_handler(236):arca.dbus.misc: is ready

Please press Enter to activate this console. MD5=[08a378558b3381351db057eb77491bf5]
[    9.020000] IFXOS, Version 1.5.17 (c) Copyright 2009, Lantiq Deutschland GmbH
@arc_wan_type  = 0
[   10.030000]
[   10.030000]
[   10.030000] Lantiq CPE API Driver version: DSL CPE API V4.16.6-pd1
[   10.040000]
[   10.040000] Predefined debug level: 3
AUTO!!!!
@@ load_ppa_modules.sh start
@@ wanphy_phymode=0
@@ wanphy_tc=0
@ load_modules ATM 0
load  start
load  done
load ...
@ PPA is ready
/opt/lantiq/bin/dsl_cpe_control -D3   -i05_00_04_00_0C_01_00_07 -f /firmware/xcpe_hw.bin              -M0 -T1:0x1:0x1_2:0x1:0x1 -A /opt/lantiq/bin/vdsl.scr             -a /opt/lantiq/bin/adsl.scr -n /etc/init.d/xdslrc.sh                &
[   15.400000] MEI_DRV: MEI_IfxRequestIrq(IRQ = 55, .., ), lock = 1
[   15.400000]
[   18.580000] hnd: module license 'Proprietary' taints kernel.
[   18.580000] Disabling lock debugging due to kernel taint
[xdslrc.sh] DSL_NOTIFICATION_TYPE=DSL_INTERFACE_STATUS
[xdslrc.sh] DSL_INTERFACE_STATUS=READY
[xdslrc.sh] DSL_XTU_STATUS=
[xdslrc.sh] Next_xTM_Mode=
[xdslrc.sh] DSL_TC_LAYER_STATUS=
[   21.260000] PCI: Enabling device 0000:01:00.0 (0000 -> 0002)
[   21.270000] Neither SPROM nor OTP has valid image
[   21.280000] srom rev:0
[   21.320000] wlan0: Broadcom BCMa8db 802.11 Wireless Controller 6.37.14.88 (r461005 WLTEST)
2.4G
[   22.580000] TAPI, Version 4.10.4.2, (c) 2001-2013 Lantiq Deutschland GmbH
[   22.780000] Lantiq MIPS34KEc MPS driver, version 2.2.7.0, (c) 2006-2010 Lantiq Deutschland GmbH
[   22.820000] Lantiq VMMC device driver, version 1.15.0.4, (c) 2006-2013 Lantiq Deutschland GmbH
[   22.980000] IFXUSB: ifxusb_hcd: version 3.2 B140220
[   22.980000] IFXUSB:    OPTION: __IS_VR9__
[   22.990000] IFXUSB:    OPTION: __UEIP__
[   22.990000] IFXUSB:    OPTION: __PHY_LONG_PREEMP__
[   22.990000] IFXUSB:    OPTION: __UNALIGNED_BUF_ADJ__
[   23.000000] IFXUSB:    OPTION: __DEBUG__
[   23.000000] IFXUSB:    OPTION: __ENABLE_DUMP__
[   23.010000] IFXUSB:    OPTION: __NEW_COC__
[   23.010000] IFXUSB:    OPTION: __IS_HOST__
[   23.020000] IFXUSB:            __IS_FIRST__
[   23.020000] IFXUSB:            __DYN_SOF_INTR__
[   23.020000] IFXUSB:            __HOST_COC__
[   23.030000] IFXUSB:            __UEIP__
[   23.030000] IFXUSB:            __DO_OC_INT__
[   23.040000] IFXUSB:            __INTRNAKRETRY__
[   23.040000] IFXUSB:            __INTRINCRETRY__
[   23.060000] Chip Version :0002 BurstSize=4
[   23.660000] IFXUSB: USB core #0 soft-reset
[   23.960000] IFXUSB: USB core #0 soft-reset
[   23.970000] ifxusb_hcd ifxusb_hcd: IFX USB Controller
[   23.970000] ifxusb_hcd ifxusb_hcd: new USB bus registered, assigned bus number 1
[   23.980000] ifxusb_hcd ifxusb_hcd: irq 54, io mem 0xbe101000
[   23.980000] drivers/char/ifxmips_gpio.c:1182:ifx_gpio_pin_reserve: Pin ID 0 (port 0, pin 0) has been reserved by module LED from kernel module!
[   24.000000] IFXUSB: Register USB VBus Failed!!
[   24.000000] IFXUSB: Init: Power Port (0)
[   24.020000] usb usb1: configuration #1 chosen from 1 choice
[   24.030000] hub 1-0:1.0: USB hub found
[   24.030000] hub 1-0:1.0: 1 port detected
[   24.120000] Initializing USB Mass Storage driver...
[   24.130000] usbcore: registered new interface driver usb-storage
[   24.130000] USB Mass Storage support registered.
[   24.840000] fuse init (API version 7.13)
[   24.920000] NTFS driver 2.1.29 [Flags: R/O MODULE].
[   24.990000] ffp: Unknown symbol ffp_del_entry_hook
[   24.990000] ffp: Unknown symbol ffp_ipv6_add_entry_hook
[   25.000000] ffp: Unknown symbol ffp_input
[   25.000000] ffp: Unknown symbol ffp_get_timeout_hook
[   25.010000] ffp: Unknown symbol ffp_get_ppp_info
[   25.010000] ffp: Unknown symbol ffp_ipv6_input
[   25.020000] ffp: Unknown symbol ffp_ipv6_del_entry_hook
[   25.020000] ffp: Unknown symbol ffp_add_entry_hook
[   25.030000] ffp: Unknown symbol ffp_ipv6_output_hook
[   25.030000] ffp: Unknown symbol ffp_get_pppol2tp_info
[   25.040000] ffp: Unknown symbol ffp_output_hook
[   25.040000] ffp: Unknown symbol imq_ffp_enqueue
[   25.050000] ffp: Unknown symbol ffp_fwd_hook
[   25.050000] ffp: Unknown symbol ffp_ipv6_get_timeout_hook
[   25.090000] ifx_ppa_init - init succeeded
 **************** boot **************************
 wlan_start*************************
 b/g/n-mode
wireless security WPA/WPA2
wireless security cipher TKIP+CCMP
maclist:
Enable WPS...
 Restart WLAN 0 .......
[   27.990000] device eth0 entered promiscuous mode
[   28.000000] device wlan0 entered promiscuous mode
[   29.270000] udev: starting version 142

[autowandetect] argv=boot

[autowandetect] ==> g_nWanDetect=1, g_nWanType=0 (0:AD,1:Eth,2:VD)
[   31.310000] VoIP Driver, Rev. 1.0.0, (c) 2013-2015 Arcadyan Technology Corp.
[   31.310000] voip_proc_init()
[   31.320000]
[   31.320000] voip_init: VoIP registration completed successfully
killall: bpalogin: no process killed
killall: bpalogin: no process killed
killall: listen: no process killed
hb done
ECO_mode disable!
Jan  1 00:00:34 crond[2431]: crond: crond (busybox 1.18.5) started, log level 8
Jan  1 00:00:34 miniupnpd[2439]: HTTP listening on port 37432
Jan  1 00:00:34 miniupnpd[2439]: HTTP IPv6 address given to control points : [fddd:3b7:e7c6:1234:5edc:96ff:fea3:a10e]
Jan  1 00:00:34 miniupnpd[2439]: Listening for NAT-PMP traffic on port 5351
[   36.100000] voip_initialize_cmd
Trigger UP TR069 Module.
Open /etc/samba/smbpasswd failed
Command: touch /etc/samba/smbpasswd
private_usb_samba_shared_entries_section_config
Line 585: I'm Here
try to start samba daemon
Create a task to start smb
start daemon
Command: /etc/init.d/samba start
Cfg ID: ARC_WLAN_24G_SSID_x_WPA_Passphrase, Idx1: 1, Idx2: -2147483648, Default value unexist!
SYS_QUEUE_Create: queueId = 32769, queueName = VOICEQ, queueSize = 28
SYS_QUEUE_Create: queueId = 65538, queueName = tqueue, queueSize = 184
SYS_QUEUE_Create: queueId = 98307, queueName = sip, queueSize = 844
SYS_QUEUE_Create: queueId = 131076, queueName = VOICEIVRM, queueSize = 12
SYS_QUEUE_Create: queueId = 163845, queueName = VOICEIVRM, queueSize = 12
SYS_QUEUE_Create: queueId = 196614, queueName = VOICEIVRM, queueSize = 12
SYS_QUEUE_Create: queueId = 229383, queueName = VOICEIVRM, queueSize = 12
Finish creating a task to start smb
Call Update Tr69 Rule.
Agradecimentos

Pessoas envolvidas em discussões, dicas ou bate papo em geral. Lista em ordem alfabética.

modem/vrv7006aw22-a-gr.txt · Última modificação: 2016/04/16 19:09 por tripleoxygen
