TP-Link XZ005-G6 (UN) V1.0

Informações sobre a TP-Link XZ005-G6 (UN) V1.0 XPON ONT/ONU. Teardown, hacking, unlocking (desbloqueio), firmwares, custom images, recuperação, bridge.

Disclaimer

Todas as informações, métodos, procedimentos, firmwares, aplicativos e material sobre modificações e configurações postadas neste wiki foram criados pelo O3 Labs (salvo menção em contrário) e disponibilizadas GRATUITAMENTE desde o dia de sua elaboração. Denuncie quando possível quaisquer tentativas de venda destes material.

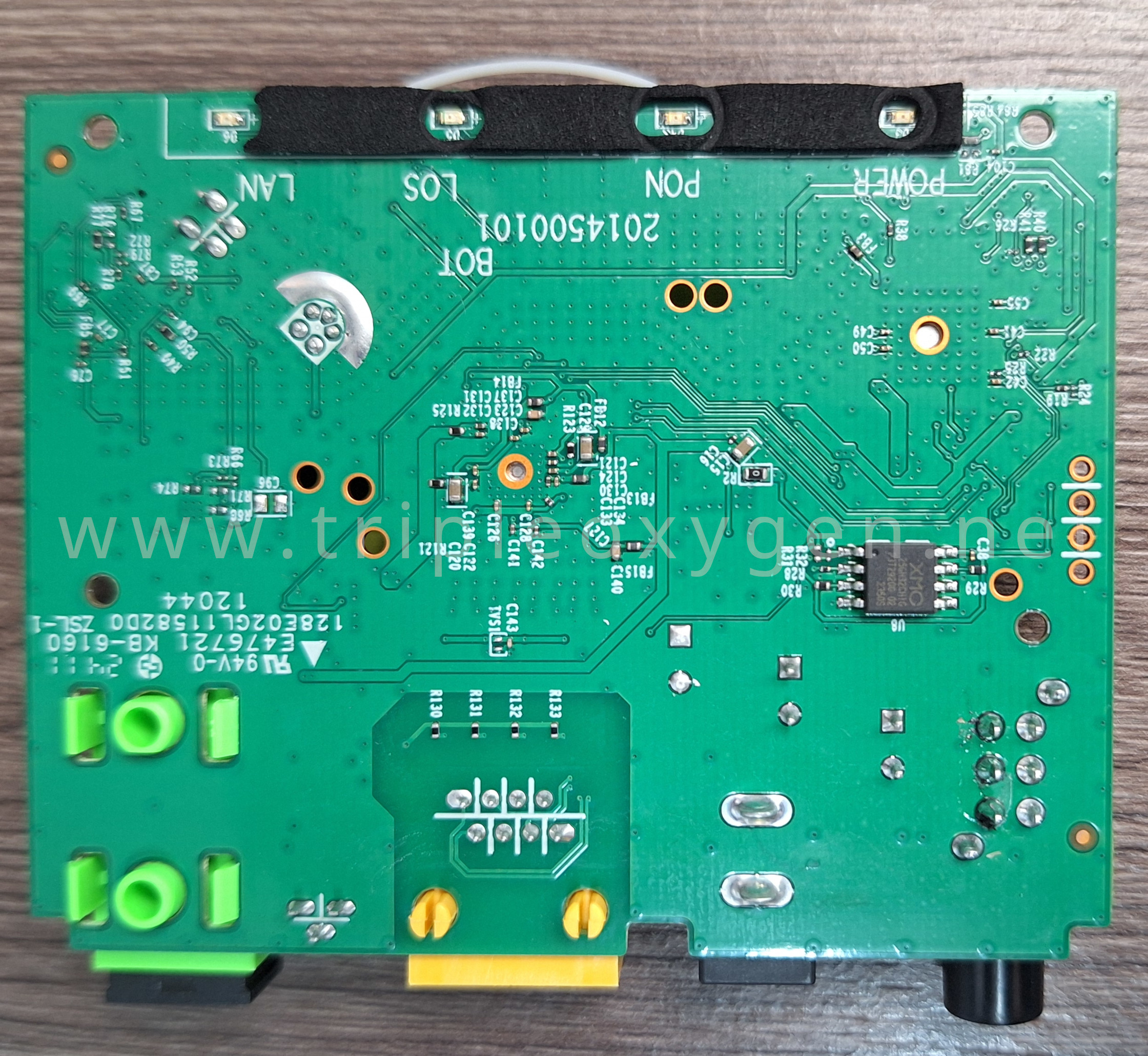

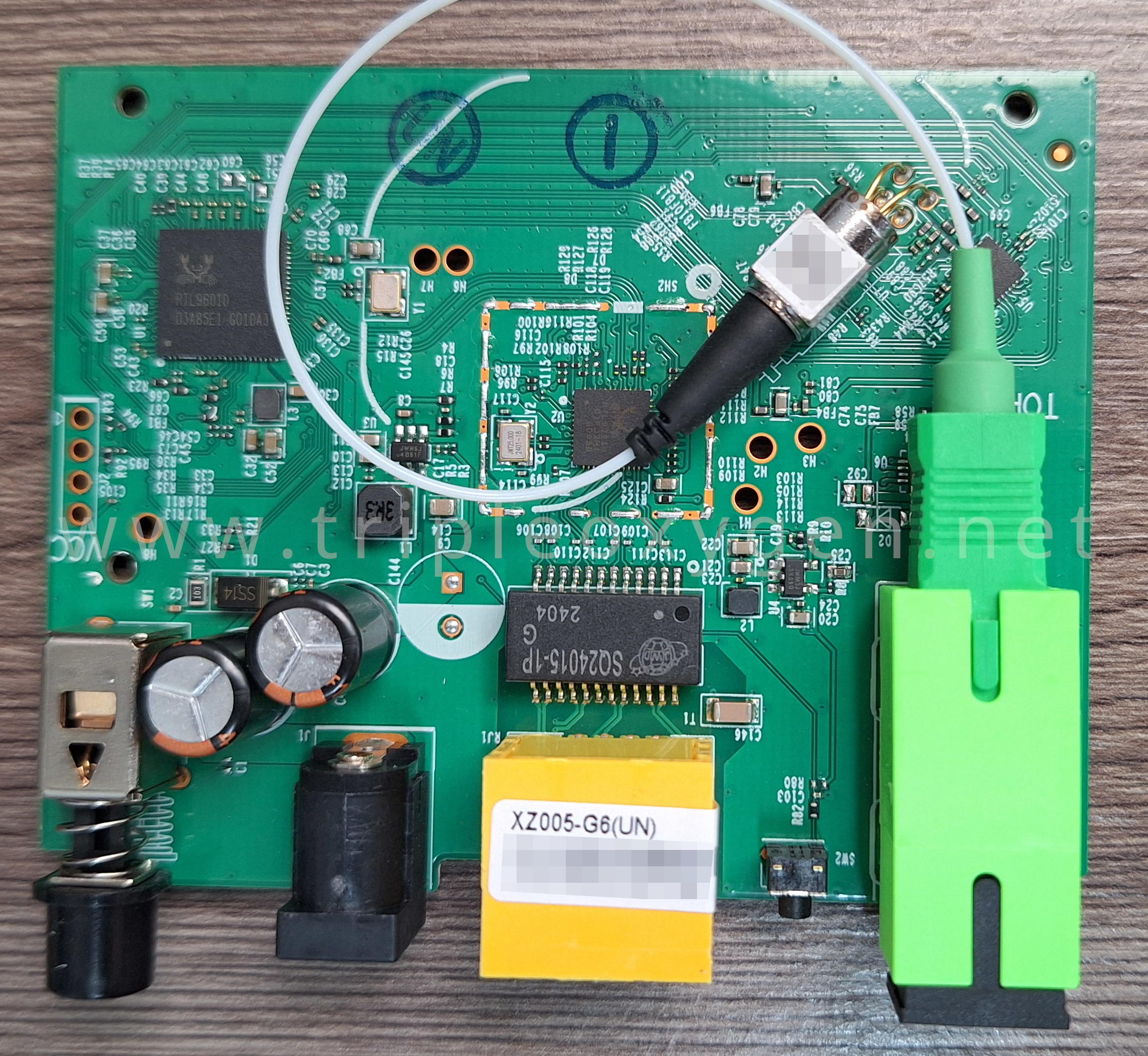

Hardware

SoC	Realtek RTL9601D
RAM	32 MB (embedded)
Flash	XM25QH32CHIG - XMC 32 Mbit (4 MB) SPI NOR Flash
LAN	2,5 Gbit/s via RTL8221B
USB	-
Wireless 2.4 GHz	-
Wireless 5 GHz	-
Laser Driver/Transceiver	UX3320S
Acoplamento fibra	SC/APC
FXS	-
HPNA	-
Serial	Sim
JTAG	-
Alimentação	DC 9 V / 600 mA
Credenciais padrão	- / (senha definida pelo usuário)
IP LAN padrão	192.168.1.1

GPON

Tipo	SFU (Ethernet UNI: 1 \ VEIP: 0)
Vendor ID	TPLG
Version	1.0
Equipment ID	XZ005-G6
OMCC Version	128 (0x80)
Software Version (Main, example)	V0.1-3.0.0
Software Version (Standby, example)	-

Bootlog

Clique aqui para visualizar

9601D
PRELOADER Bismarck 3.5
II: PLR:9d28e825, Build_date:23121209, Toolkit:rsdk-1.5.6-5281-EB-2.6.30-0.9.30.3-131105
II: Disable OCP Timeout Monitor
II: Disable LX Timeout Monitor
II: Enable Triple Synchronizer
II:cg_cpu_clk_init doneII:cg_spif_clk_init doneII: CPU 300MHz (600/2/0), MEM 325MHz, LX 200MHz, SPIF 25MHz
II: NOR SPI-F... 204016/MMIO16-1/ModeC done
AK: DRAM AUTO CALIBRATION(20210202)
AK: ZQ Calibration PassedAK: ZQ Calibration PassedAK: ZQ Calibration PassedAK: ZQ Calibration PassedAK: MR0: 0x00100952
AK: MR1: 0x00110040
AK: MR2: 0x00120000
AK: MR3: 0x00130000
AK: clear dwdqor
AK: Bit/max_r_s/max_r_l/max_w_s/max_w_l    Bit/max_r_s/max_r_l/max_w_s/max_w_l(Hex)
   [ 0]       0      1f       0      17   [16]       0      1f       0      17
   [ 1]       0      1f       0      17   [17]       0      1f       0      17
   [ 2]       0      1f       0      17   [18]       0      1f       0      15
   [ 3]       0      1f       0      17   [19]       0      1f       0      15
   [ 4]       0      1f       0      17   [20]       0      1f       0      15
   [ 5]       0      1f       0      15   [21]       0      1f       0      15
   [ 6]       0      1f       0      17   [22]       0      1f       0      17
   [ 7]       0      1f       0      15   [23]       0      1f       0      15
   [ 8]       0      1f       0      1b   [24]       0      1f       0      1b
   [ 9]       0      1f       0      1d   [25]       0      1f       0      1b
   [10]       0      1f       0      1b   [26]       0      1f       0      19
   [11]       0      1f       0      1b   [27]       0      1f       0      1b
   [12]       0      1f       0      1d   [28]       0      1f       0      1b
   [13]       0      1f       0      1b   [29]       0      1f       0      1b
   [14]       0      1f       0      1d   [30]       0      1f       0      1d
   [15]       0      1f       0      1b   [31]       0      1f       0      19
AK: DQ enable delay sync with DQ delay tap.
    0xb80015D0=0x07070707, 0xb80015D4=0x07070707, 0xb80015D8=0x09090909, 0xb80015DC=0x09090909
AK: DRAM size = 0x2000000
AK: Disable read after write function
AK: Support tREFI divided by 4
AK: dram auto calibrtaion is done
II: MEM_PROBE_OK
II: MEM_XLAT_OK
II: MEM_TO_REG_OK
II: MEM_CAL_OK
II: Change Stack from 0x9f007ff8 to 0x80efffe0
II: Decompressing U-Boot (0x81c00000 <- 0x9fc179c0)... (179 KB <- 68 KB) OK
II: Starting U-boot...


U-Boot 2011.12.NA (Dec 12 2023 - 09:54:22)

Board: RTL9601D, CPU:300MHz, LX:200MHx, MEM:325MHz, Type:DDR2
DRAM: 32 MB
SPI-F: 204016/MMIO16-1/ModeC 1x4 MB (plr_flash_info @ 81c2b810)
Loading 8192B env. variables from offset 0x40000
Loading 8192B env. variables from offset 0x42000
*** Warning - bad CRC, using default environment

Loaded 8192B env. variables from offset 0x40000
Net:   LUNA GMAC
Warning: eth device name has a space!

Hit any key to stop autoboot:  0
## Booting kernel from Legacy Image at 94078000 ...
   Image Name:   Linux Kernel Image
   Created:      2023-12-12   2:04:46 UTC
   Image Type:   MIPS Linux Kernel Image (lzma compressed)
   Data Size:    881123 Bytes = 860.5 KB
   Load Address: 80000000
   Entry Point:  80000000
   Verifying Checksum ... OK
   Uncompressing Kernel Image ... OK

Starting kernel ...

=================================
rtk_ldo_init
=================================
0xbb000044=0x00000002
0xbb000130=0x00ec0005
=================================
rtk_ims_init
=================================
starting pid 116, tty '': '/etc/init.d/rcS'
rcS.sdk
mount: mounting devpts on /dev/pts failed: No such device
=== Start to run rc0 / rc63 ===
----- do_rc [/etc/init.d/rc2] -----
mount: mounting proc on /proc failed: Device or resource busy
mount: mounting sysfs on /sys failed: Device or resource busy
Mounting /dev/mtdblock3 onto /var/config as the configuration data storage
----- do_rc [/etc/init.d/rc3] -----
no need to do reset to default
open_queue: No such file or directory
open_queue: No such file or directory
rtkbosa: Donât care pon mode, use general file
md5sum: can't open '/var/config/rtkbosa_k.bin': No such file or directory
cat: can't open '/var/config/rtkbosa_k_checksum': No such file or directory
rtkbosa: checksumold =
rtkbosa: Use general file [/var/config/rtkbosa_k.bin]
set_msgqueue_max_size:180> set msgqidds.msg_qbytes=20600 OK
set_msgqueue_max_size:180> set msgqidds.msg_qbytes=20600 OK
rtkbosa: Version 2.9 (Dec 12 2023 - 10:00:25)
rtkbosa: Detecting UX3320S ...
rtkbosa: Read 0x51.0xF5(0x55): 0x55
rtkbosa: Read 0x51.0xF6(0x58): 0x58
rtkbosa: Read 0x51.0xF7(0x33): 0x33
rtkbosa: Read 0x51.0xF8(0x33): 0x33
rtkbosa: Read 0x51.0xF9(0x32): 0x32
rtkbosa: Read 0x51.0xFA(0x30): 0x30
rtkbosa: Read 0x51.0xFB(0x53): 0x53
rtkbosa: UXFASTIC UX3320S is Found.
rtkbosa: INIT_STATE (Table 3, 0xF0): 0xff
rtkbosa: Init UX3320S ...
rtkbosa: Open file [/var/config/rtkbosa_k.bin]
rtkbosa: Open file [/var/config/rtkbosa_k.bin] error
rtkbosa: Use default file: /var/config/ux3320s_bob.conf
rtkbosa: Init UX3320S ... Done
rtkbosa: The Vendor name or PN is not empty, do NOT set it.

rtkbosa: done
------ [-b]Bootup_config ------
Fetch mib data (type 8) from program code.
Fetch mib data (type 2) from program code.
Pre-fetch mib data from program default done.
Checking input file [/var/config/lastgood_hs.xml].
[OK] Valid config file!

***** config_parser(): dfname=[/etc/config_default_hs.xml](0) loaded *****

***** config_parser(): fname=[/var/config/lastgood_hs.xml](0) loaded *****

[xml_INFO]: Load HS configuration success.
Checking input file [/var/config/lastgood.xml].
[OK] Valid config file!

***** config_parser(): dfname=[/etc/config_default.xml](0) loaded *****

***** config_parser(): fname=[/var/config/lastgood.xml](0) loaded *****

[xml_INFO]: Load CS configuration success.
==== check omci mib
/etc/runigmp.sh: line 34: igmpd: not found
running GPON mode ...
insmod: can't insert 'rldp_drv.ko': No such file or directory
/etc/runlansds.sh: line 5: can't create proc/lan_sds/sfp_app: nonexistent directory
/etc/runlansds.sh: line 6: sfpapp: not found
----- do_rc [/etc/init.d/rc10] -----
----- do_rc [/etc/init.d/rc32] -----
----- do_rc [/etc/init.d/rc34] -----
MIB chain descriptors checking (total 9) ok !
rcS.sdk init done!
/etc/init.d/rcS: line 58: can't create /proc/sys/net/ipv6/conf/all/disable_ipv6: nonexistent directory
/etc/init.d/rcS: line 74: can't create /proc/sys/net/ipv6/conf/all/forwarding: nonexistent directory
<startup.c 393 startELan> i=0 remap[0]=0 portid=0 eth0.2
system(): /bin/echo 0 eth0.2 > /proc/rtl8686gmac/dev_port_mapping
sh: can't create /proc/sys/net/ipv6/conf/br0/dad_transmits: nonexistent directory
exec /bin/boa failed
rtk_pon_led_SpecType_set 0
TRACE: /bin/ethctl addsmux bridge nas0 nas0_0 napt brpppoe
rcS init done!

Please press Enter to activate this console. 1483 bridged
[ main ] 113 - ERROR:  omci wait dm count : 1

sh: /bin/diag: not found
sh: can't create /proc/sys/net/ipv6/conf/br0/dad_transmits: nonexistent directory
iptables v1.2.7a: Couldn't find target `lan_mark'

Try `iptables -h' or 'iptables --help' for more information.
Illegal target name 'portmapping'.
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
exec /bin/ip failed
echo "0 1 0 0" > /proc/sys/loopback_detect/lan_port_remapping
loopback: LoopExistPeriod = 5
loopback: LoopCancelPeriod = 300
loopback: Ereset_loop_intf-1155
tenable loopback detect
hernetType = 0xFFFA
loopback: vid = untagged
total 1 vlan values
sh: igmpd: not found
[ main ] 113 - ERROR:  omci wait dm count : 2

br0: port 1(eth0.2) entering forwarding state
iptables: No chain/target/match by that name
iptables: No chain/target/match by that name
iptables v1.2.7a: Couldn't find match `comment'

Try `iptables -h' or 'iptables --help' for more information.
iptables: No chain/target/match by that name
Interface name length cannot exceed 15 characters.
[ cmem_initSharedBuff ] 706:  Init shared buffer success

[ cmem_initSharedBuff ] 723:  Init shared semaphore success

[ dm_shmInit ] 079:  creating shared memory region, size=1048576
[ dm_shmInit ] 118:  attach to shmId=98307 at 0x58800000
[ dm_lockInit ] 116:  create semaphore...
[ cmem_attachSharedBuff ] 748:  Start attach shared buffer

[ cmem_attachSharedBuff ] 775:  Attach shared buffer success

[ dm_readFile ] 2219 - ERROR:  can not open xml file /var/tmp/pc/reduced_data_model.xml!, about to open file /etc/reduced_data_model.xml
[ cmem_detachSharedBuff ] 798:  Start detach shared buffer

[ cmem_detachSharedBuff ] 817:  Detach shared buffer success

[ main ] 113 - ERROR:  omci wait dm count : 3

[ cmem_attachSharedBuff ] 748:  Start attach shared buffer

[ cmem_attachSharedBuff ] 775:  Attach shared buffer success

[ cmem_detachSharedBuff ] 798:  Start detach shared buffer

[ cmem_detachSharedBuff ] 817:  Detach shared buffer success

[ dm_postHook ] 1033 - ERROR:  X_TP_ConfigVersion 5a000002, X_TP_DMVersion 5a000002
[25.490][cos] 517 - ERROR: Disable gpon driver before true SN set

sh: can't create /proc/gpon/debug: nonexistent directory
[ rsl_initDevInfo ] 1725:  === softwareVersion 0.1.0 3.0.0 v6066.0 Build 231212 Rel.36338n ===
[ rsl_initDevInfo ] 1783:  === hardwareVersion XZ005-G6 v1.0 00000000 ===
[ oal_sys_getOldTZInfo ] 2703 - ERROR:  Open TZ file error!
sh: ntpc: not found
[ dm_shmInit ] 079:  creating shared memory region, size=1048576
[ dm_shmInit ] 105:  created shared memory, shmid=98307
[ dm_shmInit ] 118:  attach to shmId=98307 at 0x58800000
[ main ] 113 - ERROR:  omci wait dm count : 4
[ dm_shmInit ] 079:  creating shared memory region, size=1048576
[ dm_shmInit ] 105:  created shared memory, shmid=98307
[ dm_shmInit ] 118:  attach to shmId=98307 at 0x58800000
sh: dnsProxy: not found
killall: dnsmasq: no process killed
sh: dnsmasq: not found
[ chkDnsParameter ] 156:  Empty DNSServer()
[ chkDnsParameter ] 156:  Empty DNSServer()
sh: can't create /proc/sys/net/ipv6/conf/all/accept_ra: nonexistent directory
sh: can't create /proc/sys/net/ipv6/conf/all/autoconf: nonexistent directory
sh: dhcpc: not found
iptables: Bad rule (does a matching rule exist in that chain?)
device br0 already exists; can't create bridge with the same name
[ oal_intf_setIfMac ] 529:  No need to set MAC for br0!
[ rsl_initDev2BridgeObj ] 527:  may cause some Bad Rule errors, just ignore
iptables: Bad rule (does a matching rule exist in that chain?)
iptables: Bad rule (does a matching rule exist in that chain?)
iptables: Bad rule (does a matching rule exist in that chain?)
sh: can't create /sys/class/net/br0/bridge/multicast_snooping: nonexistent directory
[ oal_intf_setIfMac ] 529:  No need to set MAC for eth0.2!
[ util_enFuncQueue ] 117:  DEV2_ETH_INTF object do 2 operation enqueue
[ util_deFuncQueue ] 156:  DEV2_ETH_INTF object do 2 operation dequeue - 1
[ rsl_setUpDev2BridgePortObj ] 884:  eth0.2 isWanConn=0 moveIntfToBr0=0 br0
sh: can't create /proc/sys/net/ipv6/conf/eth0.2/disable_ipv6: nonexistent directory
device eth0.2 is already a member of a bridge; can't enslave it to bridge br0.
[ ethLink_createParam ] 790:  ethlink.index=0
[ ethLink_createParam ] 825:  ethlink.wanindex=-1
[ ethLink_isLowLayerWithSameIfname ] 445:  pEthLinkObj->lowerLayers=Device.Bridging.Bridge.1.Port.1.
[ util_getObjFromFullpath ] 1365 - ERROR:  Failed to get object from fullPath(Device.Bridging.Bridge.1.Port.1.), because oid 165 != 91.
[ ethLink_isLowLayerWithSameIfname ] 487:  perror:1
[ dm_getParamValue ] 1298 - ERROR:  Get instance description failed. object name = Interface
[ rsl_buildAdtWanMapList ] 9909:  perror:9805
[ rsl_adt_syncWanObj ] 10859:  perror:9805
[ rsl_adt_syncObj ] 498 - ERROR:  Failed to sync DEV2_ADT_WAN
[ oal_util_setProcLanAddr ] 313 - ERROR:  ip_conntrack module is not loaded, or we did not open the CONFIG_NF_CT_LOCAL_LIMIT_ENTRY
[ stat_setsockopt ] 217 - ERROR:  statSetsockopt: 262 opt error
[ oal_stat_addNetInfo ] 776 - ERROR:  Failed to call stat_setsockopt
iptables: Bad rule (does a matching rule exist in that chain?)
sh: ip6tables: not found
[ oal_lan6_stopDhcp6s ] 720:  Could not find pid of dibbler-server with interface name is br0!
[ oal_lan6_startDhcp6s ] 569 - ERROR:  Can not open file /var/run/dibbler/br0/server.conf, failed to start dhcp6s!
[ rsl_setDev2Dhcpv6ServerObj ] 172 - ERROR:  Start dhcp6s error!
[ rsl_setObj ] 1562:  perror:1
[ rsl_setDev2Dhcpv6ServerPoolObj ] 293:  perror:1
[ rsl_setObj ] 1562:  perror:1
[ autoConfdhcp6sMainPoolPrefix ] 784:  perror:1
[ rsl_lan6_setV6Prefix ] 1096:  perror:1
[ rsl_setObj ] 1562:  perror:1
[ rsl_lan6_responseUp ] 1267:  perror:1
[ ipIntf_lan_connect ] 4716:  perror:1
[ rsl_setUpDev2IpIntfObj ] 7096 - ERROR:  Failed to setUp(Default), ret=1
[ rsl_intfStack_setUpAllHiLayers ] 1463 - ERROR:  Failed to setUp Device.IP.Interface.1., ret(1)
rdpSNPassowdInfoGet: sn=TPLGxxxx, password=
<fMgmtInit:601> is the so is not a regular file.
<fMgmtInit:601> is the so is not a regular file.
<fMgmtInit:601> is the so is not a regular file.
Module libigmpipc.so is loaded and inited
Module /lib/features/internal/bdp_00000008.so is inited
load moduleOptInitFunc
Module /lib/feport 2 aassign to pon0
tpon0 -> 0x4
ures/internal/bdp_00000080.so is inited
no hook voice service
MIB_Table_Init Init mib table:mib_Me242.so fail, error code is:1...
MIB_Table_Init Init mib table:mib_Me243.so fail, error code is:1...
omci_wrapper_msgHandler: devMode 0,receiveState 1,usrLogLvl 1, drvLogLvl 1,sn TPLGxxxx
MIB_Table_Init Init mib table:mib_Me370.so fail, error code is:1...
omci_wrapper_setPhyPwrDown ioctl failed -1
Set port 0 Admin State Error: 0x1
[ dm_shmInit ] 079:  creating shared memory region, size=1048576
[ dm_shmInit ] 105:  created shared memory, shmid=98307
[ dm_shmInit ] 118:  attach to shmId=98307 at 0x58800000
Not in Mode H, skip ME 373
meOperCb[0] handler returns fail: HW ME373
Not in Mode H, skip ME 350
meOperCb[0] handler returns fail: HW ME350
iptables: Bad rule (does a matching rule exist in that chain?)
omci_wrpriority: 7, portmask 255, rx: c026b34c
apriority: 0, portmask 127, rx: 8023b8b8
pinsert here, priority: 4, portmask 4, rx: 80175200
per_activateGpon ioctl failed
sh: can't create /proc/domain/domain_name: nonexistent directory
Alarm handler returns fail: EthUni
[ http_set_domain ] 996 - ERROR:  u_domain: tplinkmodem.net
[ ethLink_createParam ] 790:  ethlink.index=0
[ ethLink_createParam ] 825:  ethlink.wanindex=-1
[ dm_getObj ] 743 - ERROR:  Get instance description failed. object name = Interface
[ dm_getObj ] 744:  1#6
[ rsl_getObj ] 1400:  perror:9805
[ rsl_intfStack_getIfNameFromLoLayers ] 561:  perror:9805
[ ethLink_createParam ] 759 - ERROR:  Failed to get intfName from lowerLayer(Device.Ethernet.Interface.6.) path, ret(9805).
[ rsl_initDev2EthLinkObj ] 2056 - ERROR:  Failed to create the parameter for EthLink obj, ret(9805).
[ dm_getObj ] 743 - ERROR:  Get instance description failed. object name = Interface
[ dm_getObj ] 744:  1#6
[ rsl_getObj ] 1400:  perror:9805
[ rsl_intfStack_getIfNameFromLoLayers ] 561:  perror:9805
[ ethLink_createParam ] 759 - ERROR:  Failed to get intfName from lowerLayer(Device.Ethernet.Interface.6.) path, ret(9805).
[ rsl_initDev2EthLinkObj ] 2056 - ERROR:  Failed to create the parameter for EthLink obj, ret(9805).
[ rsl_initDev2GponAuthObj ] 850:  pNewObj:gponPwd=, oltMode=0, gponSn=54504C47xxxxxxxx
[ oal_gpon_setGponParameter ] 263:  sn=54504C47xxxxxxxx, pwd=, pwdType=0, snType=1
[ rsl_initDev2GponAuthCtc ] 1046 - ERROR:  Init loid tplink passwd tplink
[ stat_setsockopt ] 217 - ERROR:  statSetsockopt: 257 opt error
[ rsl_setObj ] 1562:  perror:4510
[ rsl_initDev2StatCfgObj ] 208:  perror:4510
insmod: can't insert '/lib/modules/kmdir/kernel/net/netfilter/nf_conntrack_ftp.ko': No such file or directory
insmod: can't insert '/lib/modules/kmdir/kernel/net/netfilter/nf_nat_ftp.ko': No such file or directory
iptables: Bad rule (does a matching rule exist in that chain?)
insmod: can't insert '/lib/modules/kmdir/kernel/net/ipv4/netfilter/nf_nat_proto_gre.ko': No such file or directory
insmod: can't insert '/lib/modules/kmdir/kernel/net/ipv4/netfilter/nf_nat_pptp.ko': No such file or directory
iptables: Bad rule (does a matching rule exist in that chain?)
iptables: Bad rule (does a matching rule exist in that chain?)
insmod: can't insert '/lib/modules/kmdir/kernel/net/netfilter/nf_conntrack_tftp.ko': No such file or directory
insmod: can't insert '/lib/modules/kmdir/kernel/net/netfilter/nf_nat_tftp.ko': No such file or directory
insmod: can't insert '/lib/modules/kmdir/kernel/net/netfilter/nf_conntrack_h323.ko': No such file or directory
insmod: can't insert '/lib/modules/kmdir/kernel/net/ipv4/netfilter/nf_nat_h323.ko': No such file or directory
insmod: can't insert '/lib/modules/kmdir/kernel/net/netfilter/nf_conntrack_rtsp.ko': No such file or directory
insmod: can't insert '/lib/modules/kmdir/kernel/net/ipv4/netfilter/nf_nat_rtsp.ko': No such file or directory
insmod: can't insert '/lib/modules/kmdir/kernel/net/netfilter/nf_conntrack_sip.ko': No such file or directory
insmod: can't insert '/lib/modules/kmdir/kernel/net/netfilter/nf_nat_sip.ko': No such file or directory
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
sh: ip6tables: not found
[ dm_getObj ] 743 - ERROR:  Get instance description failed. object name = Chain
[ dm_getObj ] 744:  1#4
[ rsl_getObj ] 1400:  perror:9805
[ util_getObjFromFullpath ] 1371:  perror:9805
[ getChainInstance ] 830 - ERROR:  get chain path Device.Firewall.Chain.4. failed. errno 9805.
[ refreshFirewallRule ] 1359 - ERROR:  get firewall rule chain failed. errno is 9805.
[ rsl_initDev2FirewallObj ] 2649 - ERROR:  Refresh firewall rule faile. errno: 9805
sh: ip6tables: not found
upnpd: can't load library 'libupnp.so'
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/ethWan.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/ethWanEdit.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/wan.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/advanceLte.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/wirelessSettings.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/wirelessBasic.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/wirelessAdv.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/multiSSID.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/multiSSIDBasic.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/ddos.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/alg.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/virtualServer.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/portTrigger.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/dmz.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/upnp.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/cwmp.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/operateMode.htm, skip it
#file: ./src/http_alias.c;line: 529; error = No such file or directory
#msg: Unknown page: /main/snmp.htm, skip it
sh: can't create /proc/rtl8367s/eth_forward: nonexistent directory
sh: can't create /proc/pon_phy/debug: nonexistent directory
sh: can't create /proc/ux3320s/debug: nonexistent directory
sh: write error: Invalid argument
sh: write error: Invalid argument
sh: write error: Invalid argument
 mcast_rg_clear_all(), cmd=0
omci_wrapper_setPhyPwrDown ioctl failed -1
Set port 0 Admin State Error: 0x1
Not in Mode H, skip ME 373
meOperCb[0] handler returns fail: HW ME373
Not in Mode H, skip ME 350
meOperCb[0] handler returns fail: HW ME350
omci_wrapper_setPhyPwrDown br0: port 1(eth0.2) entering disabled state
iosomething error ?!
ctl failed -1
br0: port 1(eth0.2) entering forwarding state
set veip gem flow [0] failed!
omci_AddTrafficRule: BBA Platform: VLAN Mode CONTROL_BY_OLT
omci_wrapper_setPhyPwrDown ioctl failed -1
something error ?!
omci_AddTrafficRule: BBA Platform: VLAN Mode CONTROL_BY_OLT

Configurações

É de sua total responsabilidade o uso e implicações que utilizar equipamentos não fornecidos ou homologados pelo ISP podem causar.

Edição do arquivo de backup

O suporte a este aparelho foi submetido e adicionado à ferramenta tpconf_bin_xml de sta-c0000. Visite o repositório para instruções:

https://github.com/sta-c0000/tpconf_bin_xml

Superadmin

Há a possibilidade de criar um usuário “superadmin” com acesso a alguns (poucos) itens extras na configuração via web e um nível de acesso acima no CLI via telnet (que também é bastante limitado).

Para criá-lo, a senha inicial para o usuário normal não pode ter sido criada ainda, que é normalmente solicitada ao ligar o aparelho pela primeira vez ou realizar um factory reset e acessar a interface web pelo IP padrão.

Portanto:

Realize um factory reset (pressione o botão reset traseiro por alguns segundos)
Acesse a interface web através da seguinte URL:
- http://192.168.1.1/superadmin
Defina a senha do superadmin e confirme.

Agora, basta visitar a URL raiz ( http://192.168.1.1 ) para definir a senha do usuário normal. Caso esteja logado como superadmin, será necessário fazer Logout primeiro.

Utilize as URL específicas com suas respectivas senhas criadas anteriormente para acessar a interface como cada usuário.

Normal/user - http://192.168.1.1
Superadmin - http://192.168.1.1/superadmin

Bugs, dicas e notas

Alguns parâmetros GPON/OMCI sem campo para edição na interface web podem ser alterados exportando o backup das configurações, editando-os e importando de volta. Veja as instruções.
- Exceto pelos seguintes campos, pois são forçados pelo firmware e nenhuma edição pelo usuário é honrada:
  - Version (ME 256 “ONU-G”), também conhecido como “Hardware version”
  - Version (ME 7 “Software image”), também conhecido como “Software version”.
- Portanto, caso seu uso exija a edição destes campos, este aparelho não é adequado.

Firmwares

Stock

Versões oficiais e não modificadas para o aparelho. São de propriedade do fabricante - que detém todos os direitos sobre elas - e mantidas aqui apenas em caráter de arquivamento e espelhamento, podendo ser removidas caso solicitado pelos representantes oficiais da empresa.

Custom

Todas as versões custom são testadas localmente ao máximo possível, porém seu uso e possíveis implicações são de total responsabilidade do proprietário do aparelho. Não atualize o aparelho sem necessidade; só atualize o aparelho para as versões custom se confirmado que precise das alterações listadas.

Os arquivos produzidos pelo O3 Labs são assinados para garantir sua integridade e procedência. Para instruções de como validar as assinaturas, acesse aqui.

Não haverá. As imagens de firmware são assinadas e verificadas através da atualização via web e OMCI neste aparelho. Pode ser possível carregar uma imagem de outras formas - via serial/UART, por exemplo -, porém são métodos mais complexos e nem todos utilizarão, portanto não serão produzidas.

Agradecimentos

Pessoas envolvidas em arquivos, discussões, dicas, doações ou bate papo em geral. Lista em ordem alfabética.

skullao
